Engine Coolant Temperature Sensor (G1818166): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

  3. Drain the coolant system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

  4. Remove the secondary bulkhead panel right.

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL

  5. WARNING: Since injury such as scalding could be caused by escaping steam or coolant, do not remove the engine coolant temperature sensor while the system is hot.
    CAUTION: Be prepared to collect escaping coolant.

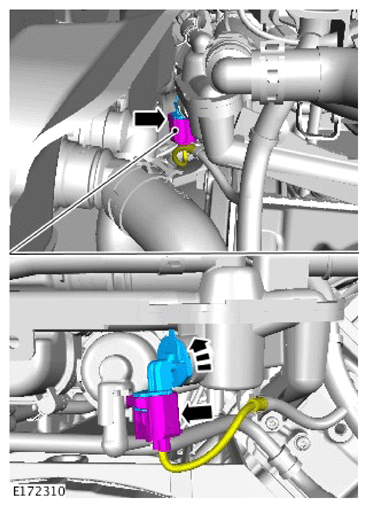

    G14290057Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector and remove the engine coolant temperature sensor.
