Crankshaft Position Sensor (G2131521): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the air deflector.
Refer to the appropriate repair information
-
NOTE: Clean the components general area prior to dismantling.

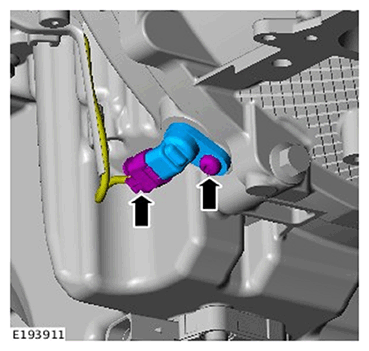

Remove the crankshaft position sensor.
