Variable Oil Pump

WARNING: This page is about a different variant/trim than selected.

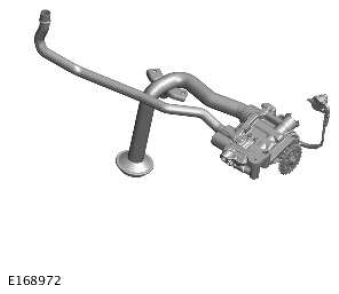

G11608574Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The variable oil pump is attached to the underside of the windage tray with 3 bolts. A solenoid valve in the variable oil pump switches to reduce the oil gallery control pressure at lower engine speeds. This reduces the power consumption of the variable oil pump and reducing overall fuel consumption. The variable oil pump is controlled by the Powertrain Control Module (PCM).
