Heated Oxygen Sensor

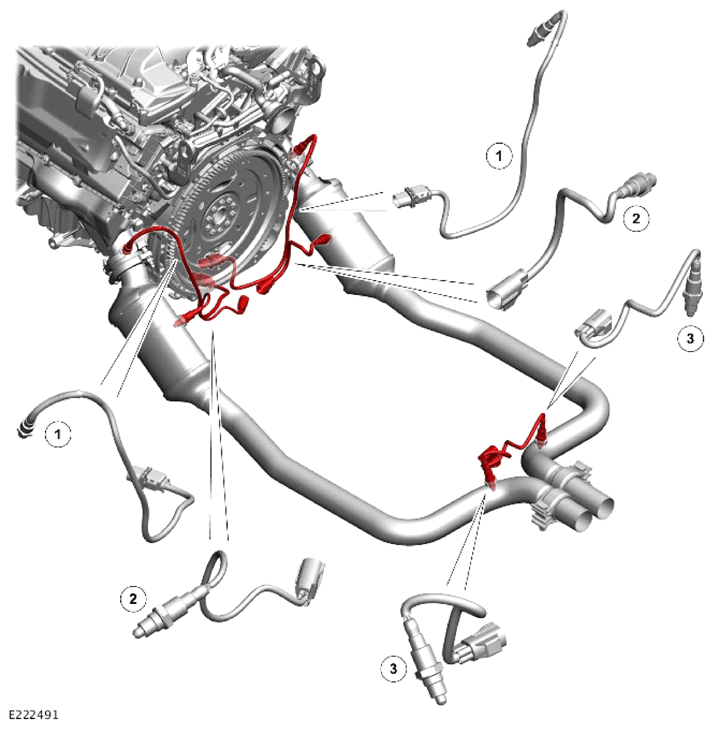

| ITEM | DESCRIPTION |
|---|---|
| 1 | Pre catalyst Heated Oxygen Sensor (HO2S) (2 off) |
| 2 | Mid catalyst HO2S (2 off) |
| 3 | Post catalyst HO2S (2 off) |
The Heated Oxygen Sensor (HO2S) allow the Powertrain Control Module (PCM) to measure the oxygen content of the exhaust gases. Signals from the HO2S is used by the PCM for closed loop control of the fuel and air mixture and for catalytic converter monitoring.
A pre catalyst HO2S is installed in the outlet of each exhaust manifold, which enables independent control of the fuel and air mixture for each cylinder bank. A mid catalyst HO2S is installed in a central position on the side of each catalytic converter. The post catalyst HO2S is installed in each catalytic converter outlet pipe in the exhaust system. These enable the operation of the catalytic converter to be optimized and monitored.
The HO2S need to operate at high temperatures in order to function correctly. To achieve the high temperatures required, the sensors are equipped with heater elements. The heater elements are controlled by a Pulse Width Modulation (PWM) signal from the PCM. The heater elements are operated after each engine start, once it has been calculated that there is no moisture in the exhaust. The heater elements are also operated during low load conditions when the temperature of the exhaust gases is insufficient to maintain the required sensor temperature.
The time period for operation of the heater elements is determined by the temperature of the post catalyst HO2S. The PWM duty cycle is carefully controlled to prevent thermal shock to cold sensors. A non-functioning heater delays the sensors readiness for closed loop control and increases emissions.
For additional information, refer to: ELECTRONIC ENGINE CONTROLS
The pre catalyst HO2S produce a constant voltage, with a variable current that is proportional to the lambda ratio. The mid and post catalyst HO2S produce an output voltage dependant on the ratio of the exhaust gas oxygen to the ambient oxygen.
Diagnosis of electrical faults is continually monitored in pre, mid and post catalyst HO2S. This is achieved by checking the signal against maximum and minimum threshold, for open and short circuit conditions.
If a HO2S sensor fails, the Malfunction Indicator Lamp (MIL) will be displayed on the Instrument Cluster (IC). Dependent on which HO2S sensor has failed the engine may also be affected by reduced refinement and performance.
