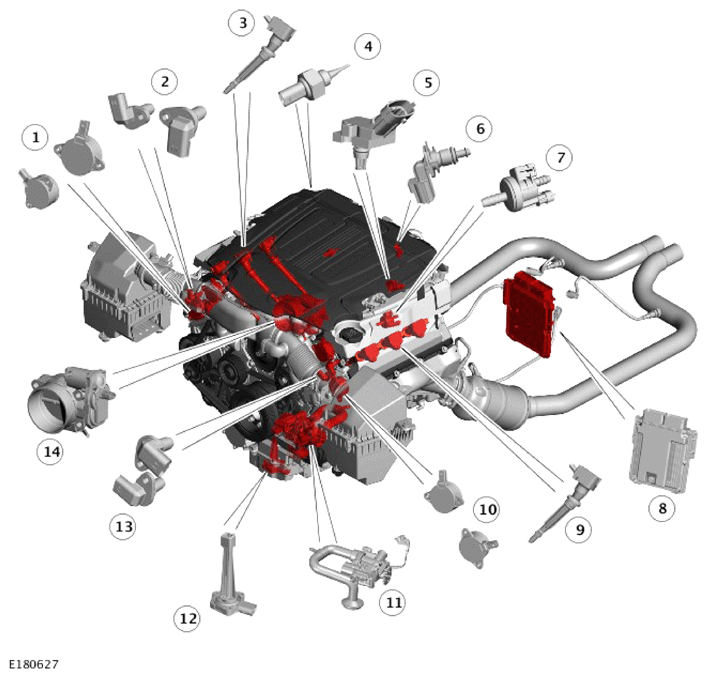

Component Location - 1 Of 4
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Variable Camshaft Timing (VCT) actuator - Bank 1 (2 off) |
| 2 | Camshaft Position (CMP) sensor - Bank 1 (2 off) |
| 3 | Ignition coil - Bank 2 (3 off) |
| 4 | Charge air cooler temperature sensor |
| 5 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 6 | Engine Coolant Temperature (ECT) sensor 1 |
| 7 | Purge valve |
| 8 | Powertrain Control Module (PCM) |
| 9 | Ignition coil - Bank 1 (3 off) |
| 10 | VCT actuator - Bank 2 (2 off) |
| 11 | Variable oil pump |
| 12 | Oil level and temperature sensor |
| 13 | CMP sensor - Bank 2 (2 off) |
| 14 | Electric throttle |
