Low Fuel Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

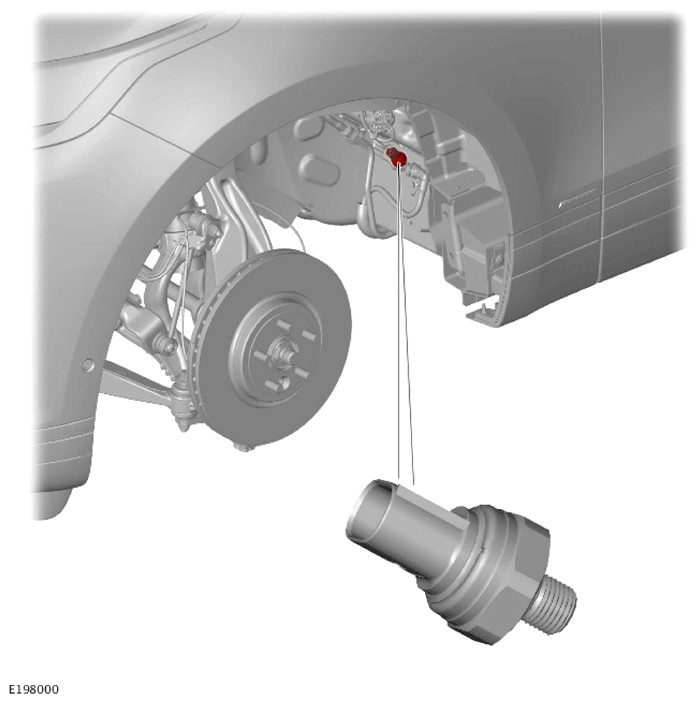

The low fuel pressure sensor is located on a bracket behind the front left wheel arch liner. The low fuel pressure sensor is attached to the bracket with 1 screw. The low fuel pressure sensor is located in a connector between the fuel lines from the following:
- The fuel pump module
- The High Pressure (HP) fuel pumps.
The low fuel pressure sensor measures the fuel pressure being supplied from the fuel pump module to the HP fuel pumps.
The low fuel pressure sensor is hardwired to the Powertrain Control Module (PCM).
For additional information, refer to: ELECTRONIC ENGINE CONTROLS
