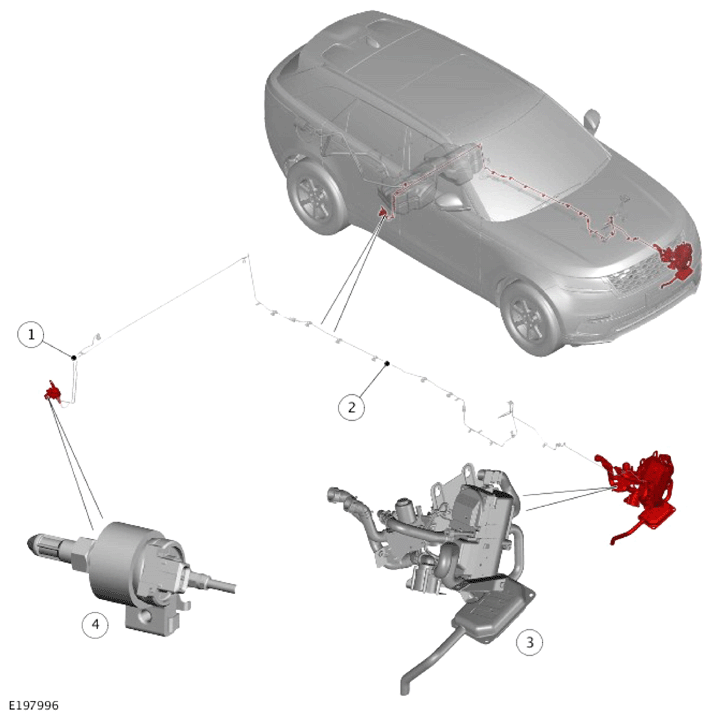

Component Location - 4 Of 4 - Fuel Fired Booster Heater Fuel Supply (If Equipped)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Fuel line - Fuel tank to Fuel Fired Booster Heater (FFBH) fuel pump |
| 2 |
Fuel line - FFBH fuel pump to FFBH |
| 3 |
FFBH |
| 4 |
FFBH fuel pump |
