Throttle Body (G1851806): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

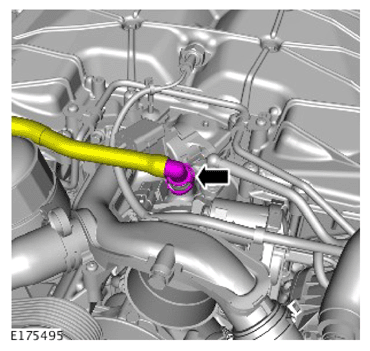

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

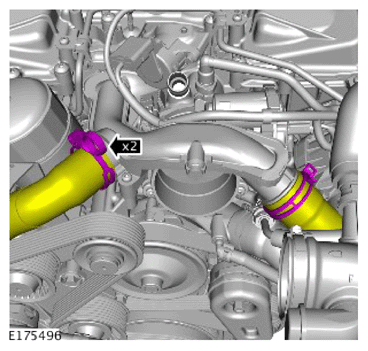

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

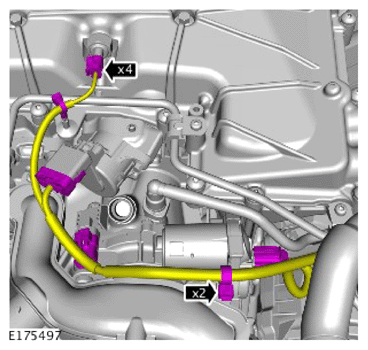

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

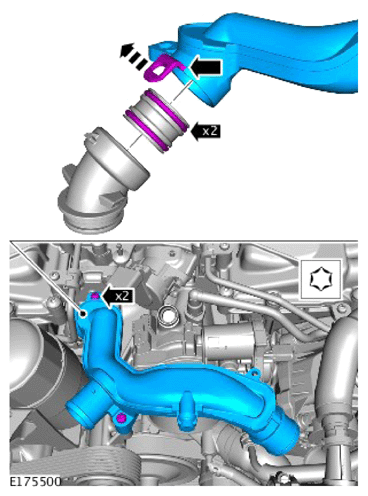

NOTE:
- This step should only be carried out on vehicles pre 2015.
- Remove and discard the seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Engine coolant outlet seal Quantity: 2 .

Torque : 10 Nm

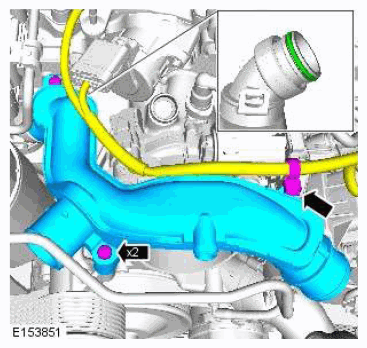

NOTE:
- This step should only be carried out on vehicles from 2015 onwards.
- Remove and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Engine coolant outlet seal Quantity: 1 .

Torque : 10 Nm
CAUTION:
- Take extra care when removing the throttle body, failure to follow this instruction may result in damage to the manifold absolute pressure and temperature (MAPT) sensor.
- Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.

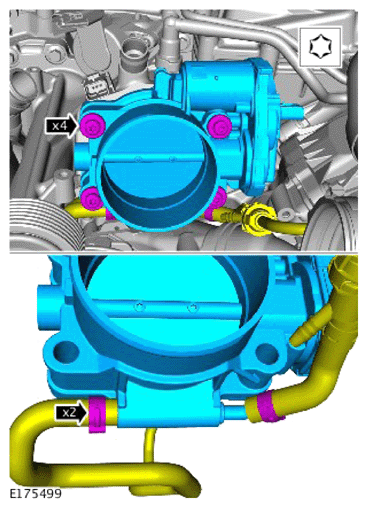

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm

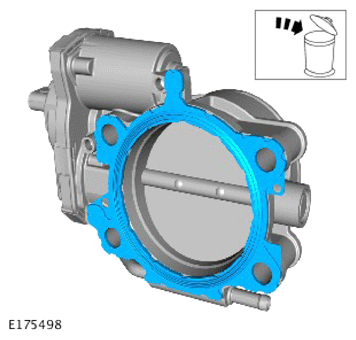

NOTE: Install a new gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Throttle body gasket Quantity: 1 .
