Fuel Rails And Crossover Tube
WARNING: This page is about a different variant/trim than selected.

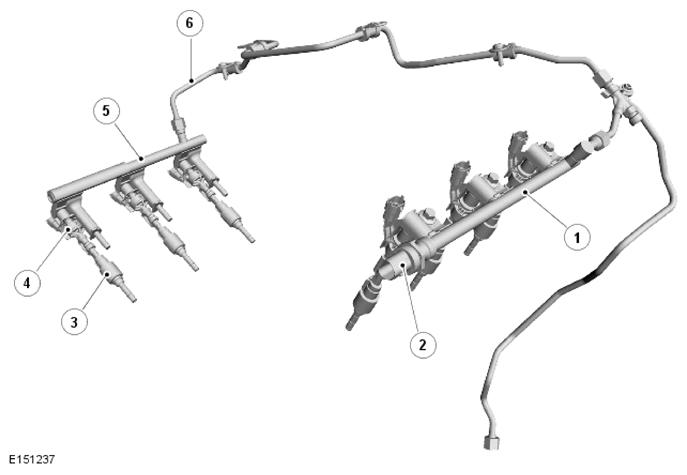

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel rail - Bank 1 |
| 2 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 3 | Fuel injector (6 off) |
| 4 | Hold down spring (6 off) |
| 5 | Fuel rail - Bank 2 |
| 6 | Crossover tube |
The two fuel rails and the crossover tube are made from stainless steel. Three bolts attach each fuel rail to the related cylinder head. The crossover tube connects the front High Pressure (HP) line to the Bank 2 fuel rail and provides equal pressure in the two fuel rails. Four P-clips attach the crossover tube to the top of the charge air cooler.
The rear of the Bank 1 fuel rail incorporates a threaded boss for installation of the Fuel Rail Pressure and Temperature (FRPT) sensor.
