Engine Coolant Temperature Sensor (G2278271): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Since injury such as scalding could be caused by escaping steam or coolant, do not remove the engine coolant temperature sensor while the system is hot.
Be prepared to collect escaping coolant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD (G1898644)
Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

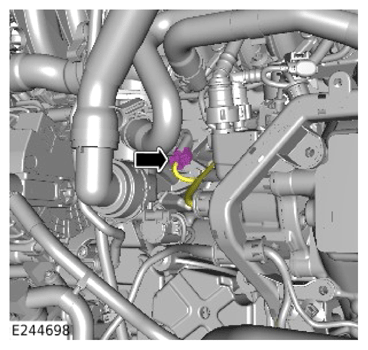

Disconnect the electrical connector from the Engine Coolant Temperature (ECT) sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

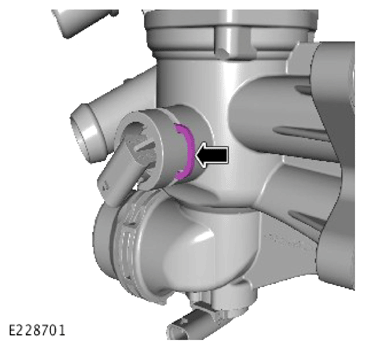

Remove the ECT sensor clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

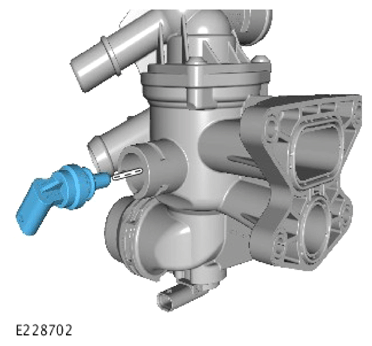

Remove the ECT sensor.
