Coolant Pump - Charge Air Cooler (G2116872): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Drain the coolant system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

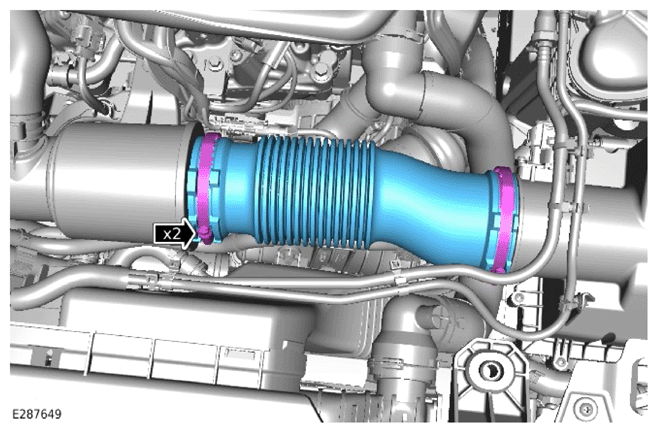

- Release the 2 hose clamps.
- Remove the clean air outlet tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

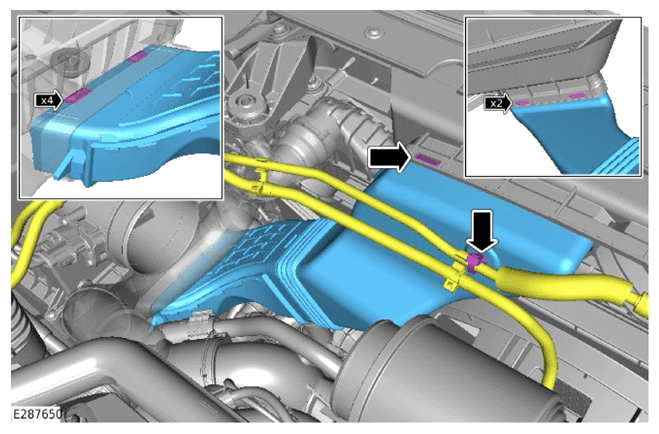

- Release the coolant hose clip.
- Release the 7 clips.
- Remove the dirty air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

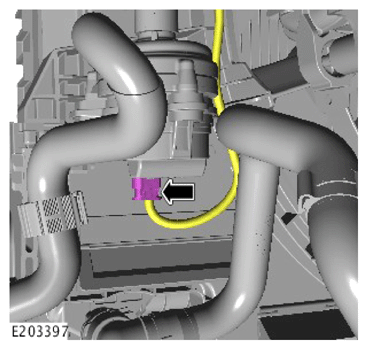

Disconnect the charge air cooler coolant pump electrical connector.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

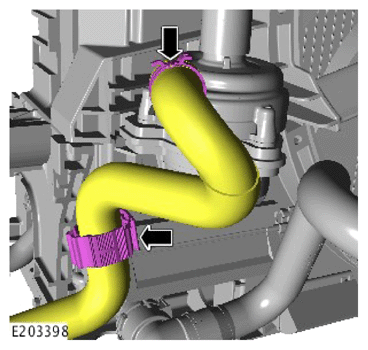

Release the lower charge air cooler coolant pump hose and reposition away from the pump assembly.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

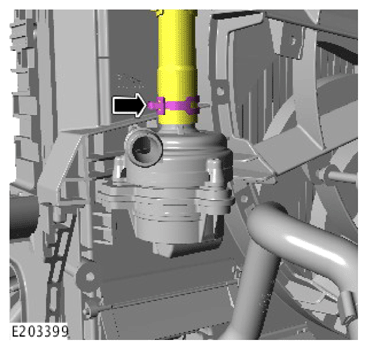

Release the upper charge air cooler coolant pump hose and reposition away from the pump assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

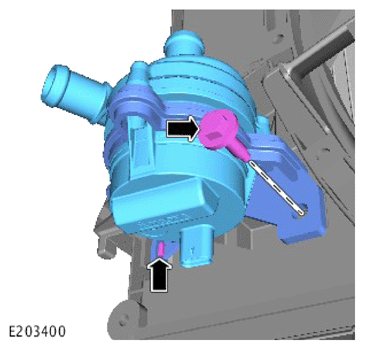

Remove the charge air cooler coolant pump and bracket from the vehicle.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

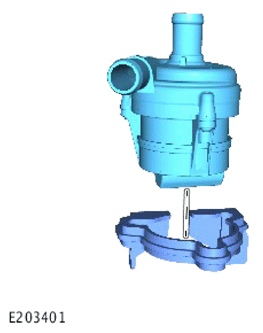

Remove the charge air cooler coolant pump bracket from the pump assembly.
