Coolant Expansion Tank (G2132055): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

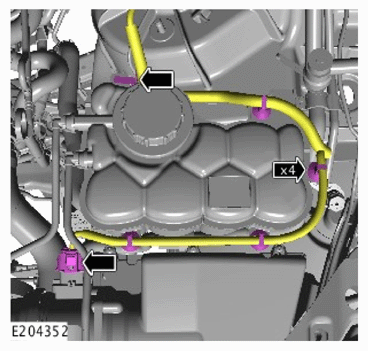

Disconnect and release the air intake temperature sensor wiring harness.
WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

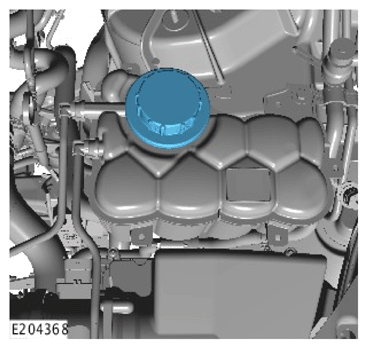

Remove the coolant expansion tank cap.
Using a syringe, remove the cooling fluid from the expansion tank.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

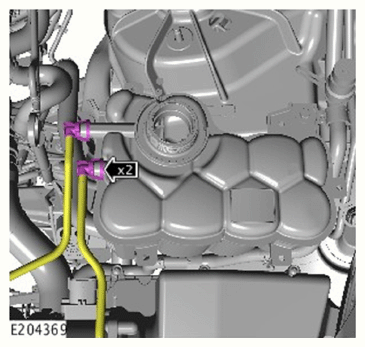

Remove the coolant expansion tank 2 upper coolant hoses
NOTE: Clamp the hose to minimize coolant loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

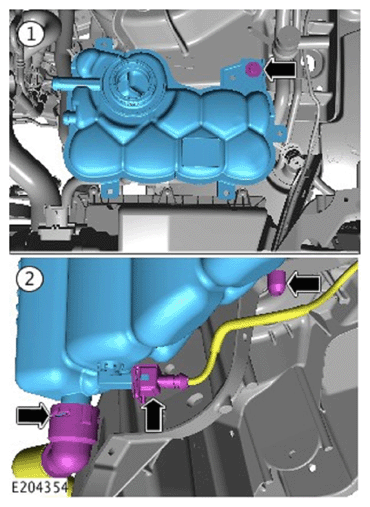

Remove the expansion tank. Disconnect the lower coolant hose and coolant level sensor wiring harness.
