Charge Air Radiator (G2135291): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2226948)
Remove the condenser.
Refer to: CONDENSER - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

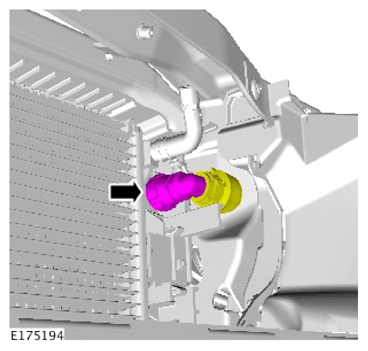

Disconnect the upper charge air radiator coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

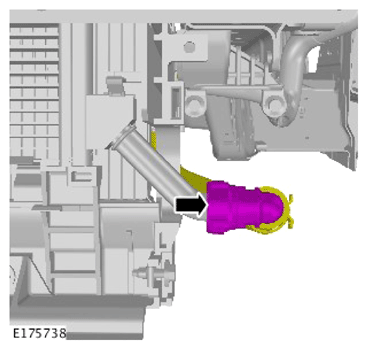

Disconnect the lower charge air radiator coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

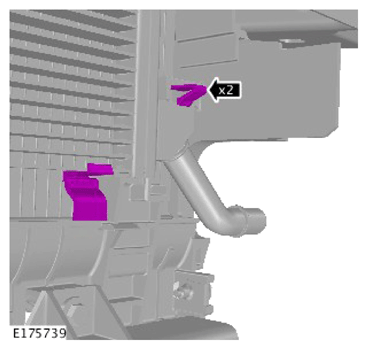

Release the lower charge air radiator securing clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

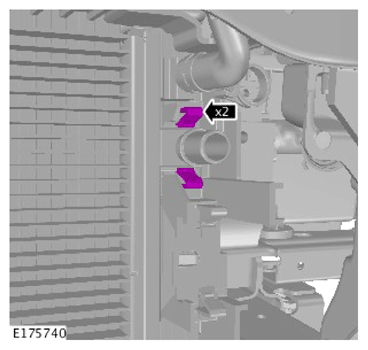

Release the upper charge air radiator securing clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

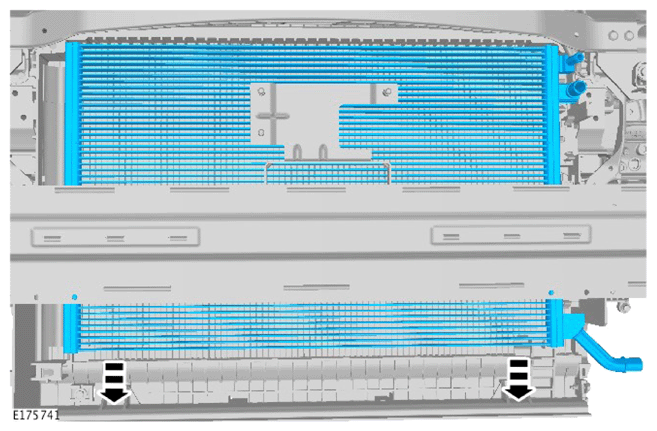

Remove the charge air radiator assembly.
