Auxiliary Radiator (G2344913): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

- Raise and support the vehicle on a suitable 2 post lift.
  Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD (G1898644)
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the front right wheel arch liner.
Refer to:FENDER SPLASH SHIELD (G2028528)
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

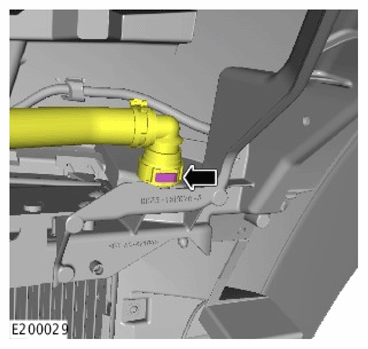

- Disconnect the upper coolant hose.
- Reposition the upper coolant hose away from the auxiliary radiator.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

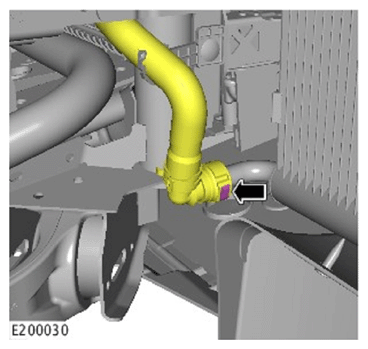

- Disconnect the lower coolant hose.
- Reposition the lower coolant hose away from the auxiliary radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

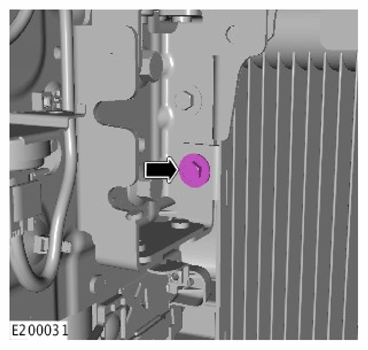

Remove the auxiliary radiator bracket bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

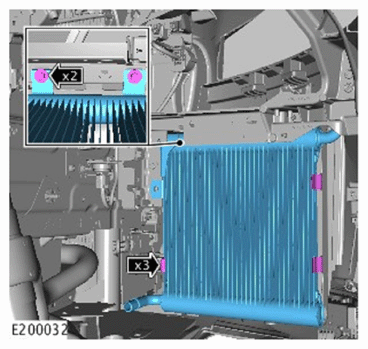

- Remove the 2 auxiliary radiator bolts.
- Release the 3 clips.
- Remove the auxiliary radiator.
