Engine Cooling - INGENIUM I4 2.0L Diesel (G2006254): Description: Radiator

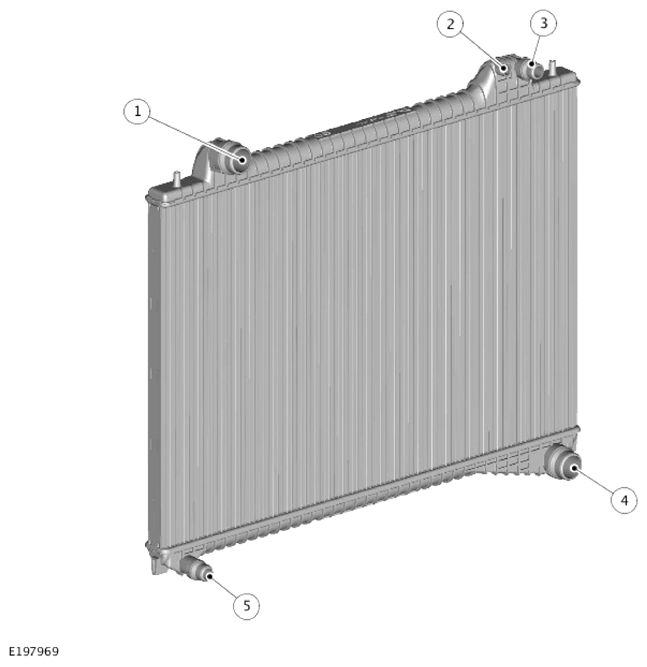

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Radiator upper hose |
| 2 | Hose connection - Coolant expansion tank |
| 3 | Hose connection - Charge air radiator |
| 4 | Hose connection - Radiator lower hose |
| 5 | Hose connection - ATF cooler |
The radiator is a vertical flow type with an aluminum core and plastic end tanks in the upper and lower position of the radiator. The radiator uses brazed aluminum tube technology to reduce weight. A low temperature zone is located at the left side of the radiator and provides cooled engine coolant for the ATF cooler.
The radiator is located in the vehicle by locating spigots and supports integrated into the end tanks. The supports are installed in rubber isolator bushes in the lower support bracket. The upper mounting of the end tanks is through a cross-strut attached to the vehicle body.
A drain plug is integrated into the bottom left end tank. Engine coolant outlet and inlet connections are incorporated into the left and right end tanks respectively. The right end tank also has a connection for engine coolant outlet to the ATF cooler and to the auxiliary radiator.
There is a connection to the charge air radiator to allow filling and bleeding of the system. For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING
