Block Heater - If Equipped
WARNING: This page is about a different variant/trim than selected.

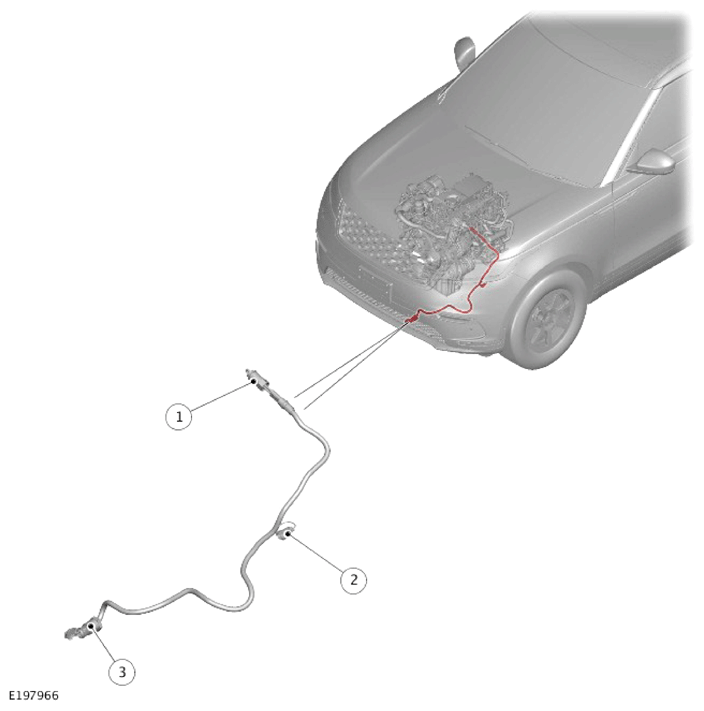

| ITEM | DESCRIPTION |
|---|---|
| 1 | Block heater element |
| 2 | Ground connection |
| 3 | Vehicle connector |
For vehicle markets subject to very cold climatic conditions, a cylinder block heater is installed in place of the cylinder block drain plug on the left side of the cylinder block. Dependent on market specifications, the block heater is either a 110 V Alternating Current (AC) or 240 V AC electric heater element. It can be connected to a domestic power supply through a connector in the left side grill of the front bumper.
