Auxiliary Radiator
WARNING: This page is about a different variant/trim than selected.

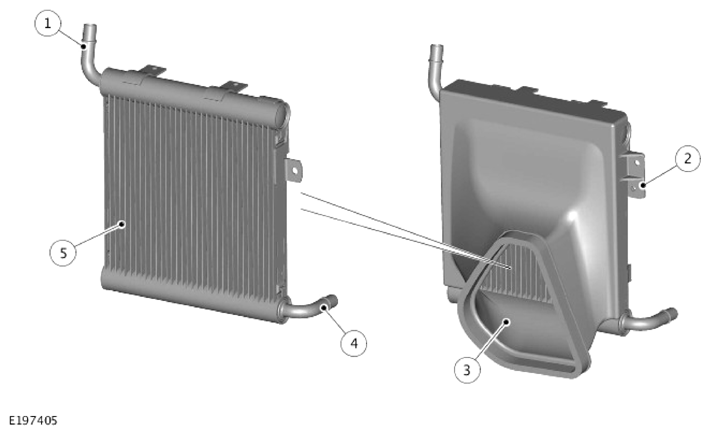

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Auxiliary radiator inlet |
| 2 | Radiator support bracket |
| 3 | Front air duct |
| 4 | Hose connection - Auxiliary radiator outlet |
| 5 | Auxiliary radiator |
The auxiliary radiator is located on the right side of the cooling pack, behind the outer air intake in the front bumper. The auxiliary radiator is installed in air ducts attached to the front bumper armature and the front end carrier. The upper end tank of the auxiliary radiator is held in a support bracket in the air duct.
The auxiliary radiator is connected in parallel with the radiator to increase the engine cooling capacity.
