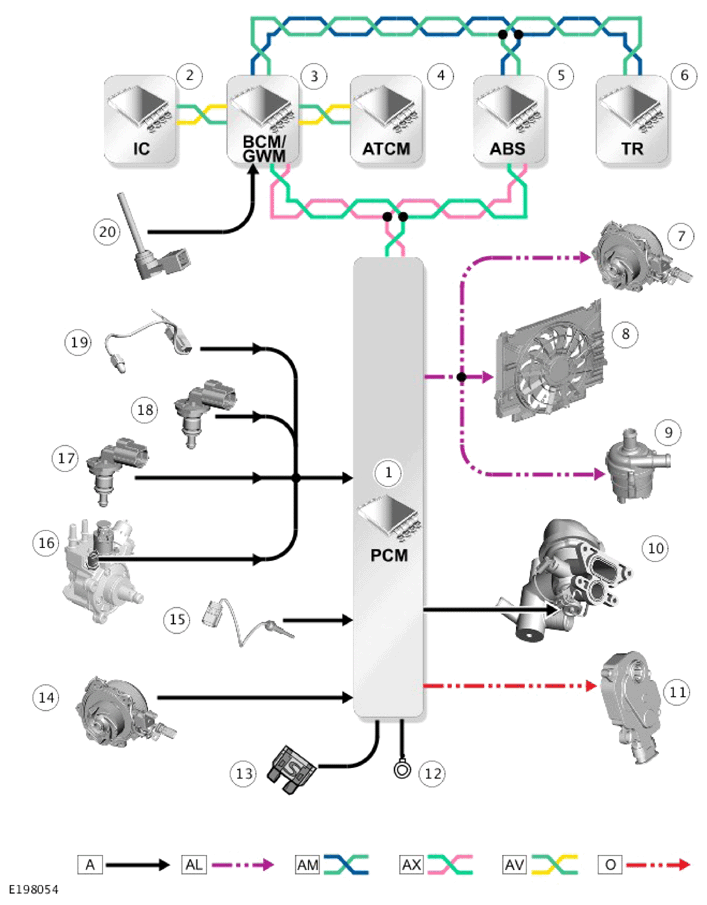

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AM = HS CAN CHASSIS SYSTEMS BUS: AX = FLEXRAY BUS: AV = HS CAN COMFORT SYSTEMS BUS: O = LOCAL INTERCONNECT NETWORK LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | Instrument Cluster (IC) |
| 3 | BCM /GWM |
| 4 | HVAC Control Module |
| 5 | Anti-Lock Brake System Control Module (ABS) |
| 6 | TR |
| 7 | Variable coolant pump |
| 8 | Electric cooling fan |
| 9 | Charge air coolant pump |
| 10 | Electric thermostat |
| 11 | Active grille air shutter motor - If equipped |
| 12 | Ground |
| 13 | Power supply |
| 14 | Variable coolant pump shroud position sensor |
| 15 | Cylinder head temperature sensor |
| 16 | Fuel temperature sensor |
| 17 | Engine coolant temperature sensor - Electric thermostat housing |
| 18 | Radiator outlet temperature sensor |
| 19 | Ambient Air Temperature (AAT) sensor |
| 20 | Engine coolant level sensor |
