Throttle Body (G1817179): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. "When" disconnected all openings must be sealed.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air cooler pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the throttle body electrical connector and detach the wiring harness.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

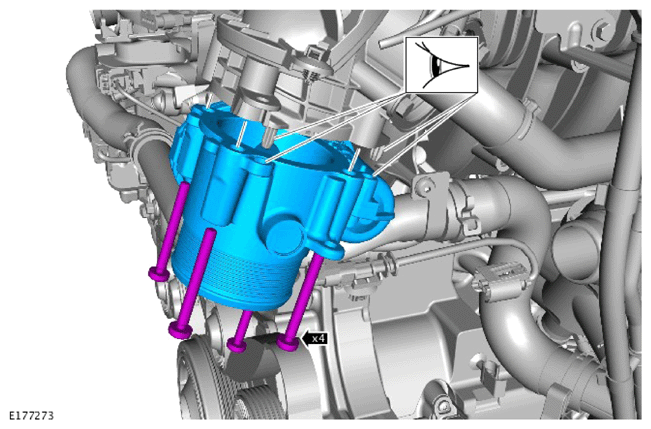

NOTE: Note the orientation of the locating pegs for correct installation of the throttle body.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
