Swirl Plate Actuator - INGENIUM I4 2.0L Diesel - High Power (G1985053): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

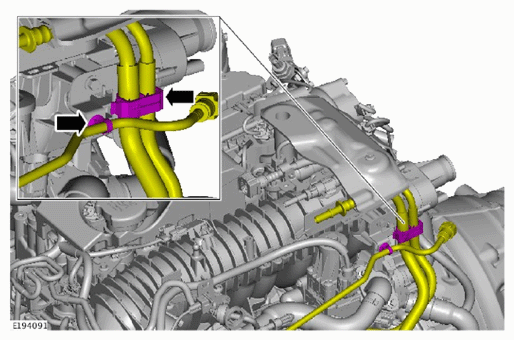

Release the fuel supply pipes from the retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

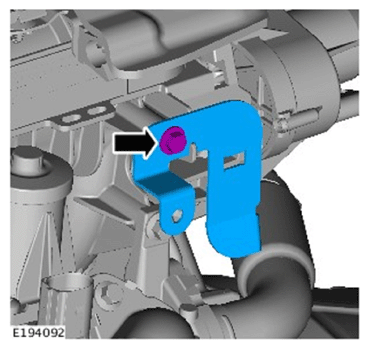

Remove the fuel supply pipe bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

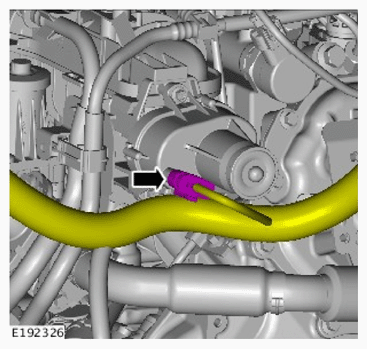

Disconnect the swirl plate actuator electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

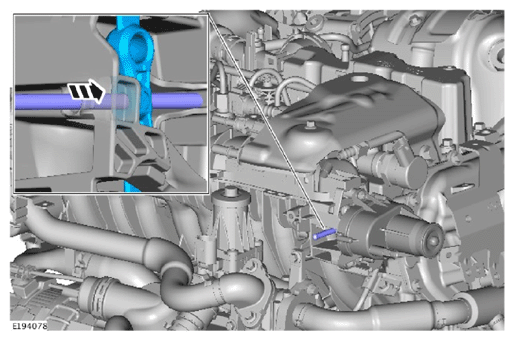

Insert a 4 mm retaining pin where shown to aid installation.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

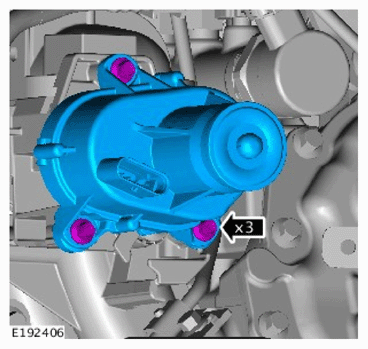

Remove the swirl plate actuator.
