Swirl Plate Actuator - INGENIUM I4 2.0L Diesel - High Power (G1985053): Installation
WARNING: This page is about a different variant/trim than selected.
- Install the swirl plate actuator and tighten the 3 bolts to the correct torque.
Torque : 5 Nm

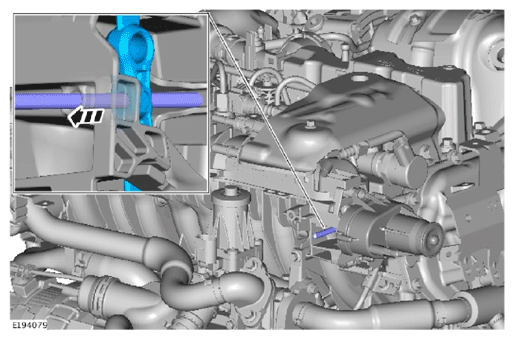

Remove the retaining pin.
- Connect the swirl plate actuator electrical connector.
- Install the fuel supply pipe bracket.
Torque : 7 Nm
- Secure the fuel supply pipes.
- Install the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
