Fuel Rail Supply Pipe (G1947510): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Always follow the Diesel fuel system health and safety precautions, when any repairs to the fuel system are done.
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the High Pressure (HP) Exhaust Gas Recirculation (EGR) valve.
Refer to: HIGH PRESSURE EXHAUST GAS RECIRCULATION VALVE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

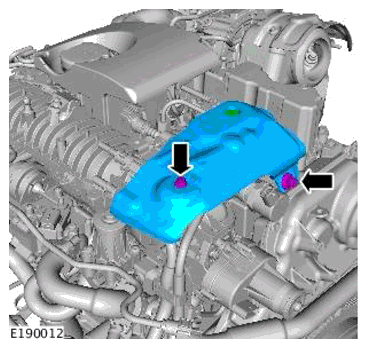

- Remove the 2 bolts.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

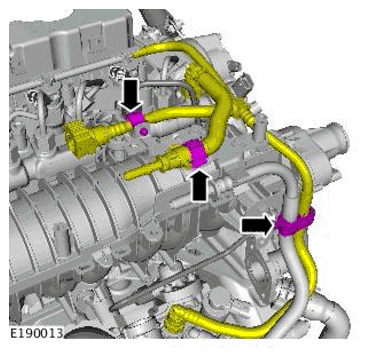

- Release the 4 clips.
- Reposition the 2 fuel pipes away from the engine.
WARNING: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen the 2 fuel line unions.
- Remove the bolt.
- Remove and discard the fuel rail supply pipe.
