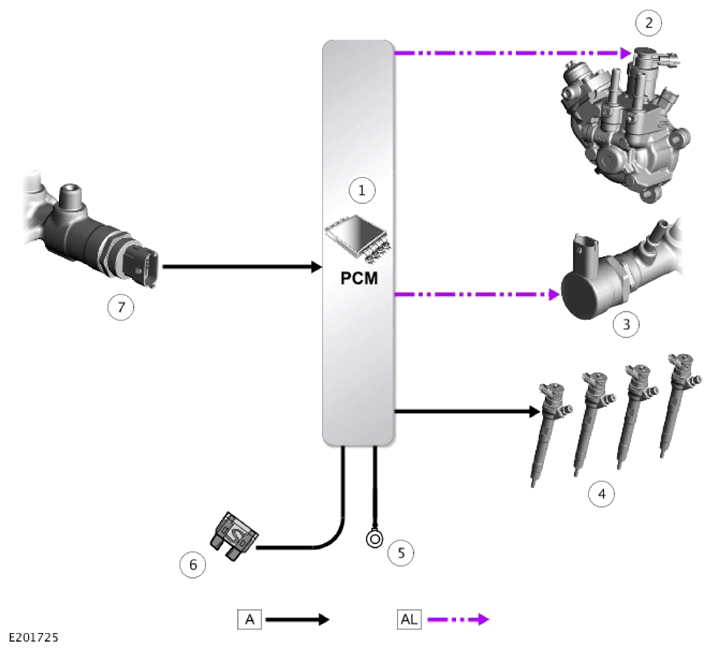

Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Fuel metering valve |
| 3 |
Fuel rail Pressure Control Valve (PCV) |
| 4 |
Fuel injector (4 off) |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
Fuel Rail Pressure (FRP) sensor |
