Fuel Charging System
WARNING: This page is about a different variant/trim than selected.

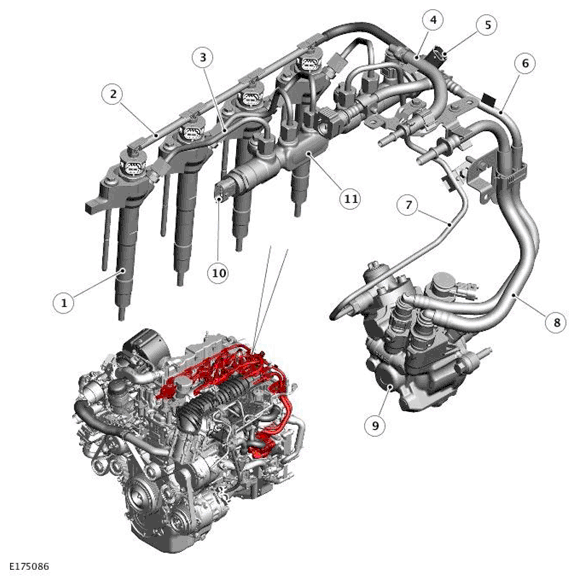

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel injector (4 off) |
| 2 | Low Pressure (LP) pipe - Injector leak-off |
| 3 | High Pressure (HP) pipe - Fuel rail to injector (4 off) |
| 4 | Low Pressure (LP) pipe - Fuel rail leak-off |
| 5 | Fuel rail Pressure Control Valve (PCV) |
| 6 | Low Pressure (LP) pipe - High Pressure (HP) pump leak-off |
| 7 | High Pressure (HP) - High Pressure (HP) pump to fuel rail |
| 8 | Fuel supply pipe - Fuel filter to lift pump |
| 9 | High Pressure (HP) fuel pump and integral lift pump |
| 10 | Fuel Rail Pressure (FRP) sensor |
