Low Pressure Exhaust Gas RECIRCULATION Valve (G1868228): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the intake air resonator.
Refer to: INTAKE AIR RESONATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

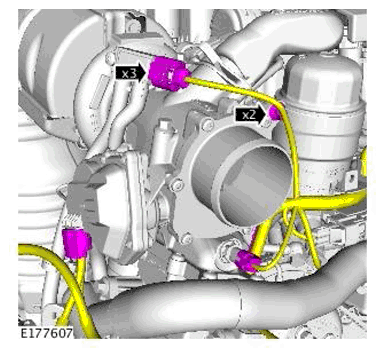

- Disconnect the 3 electrical connectors.

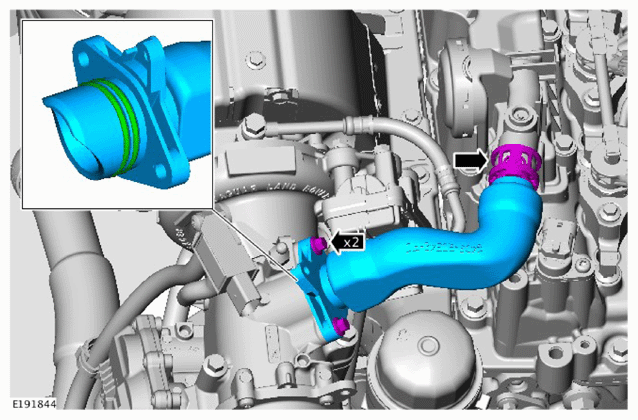

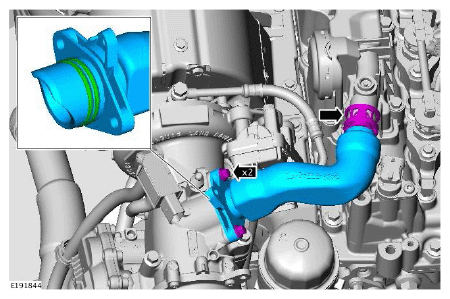

- Remove the 2 clips.
NOTE: Inspect the 2 O-ring seals and replace if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

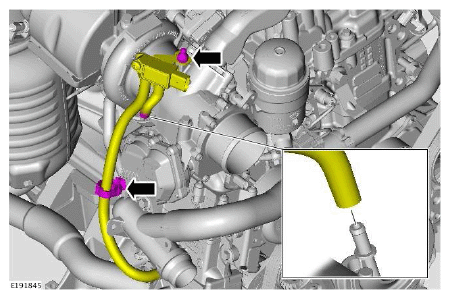

- Remove the bolt.
- Release the clip.
- Release the pressure sensor assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the low pressure Exhaust Gas Recirculation (EGR) valve.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

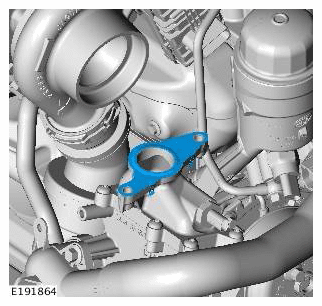

Remove and discard the gasket.
