Low Pressure Exhaust Gas RECIRCULATION Cooler (G1868229): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Protect the accessory drive belt to prevent contamination from engine coolant.
Remove the low pressure Exhaust Gas Recirculation (EGR) valve.
Refer to: LOW PRESSURE EXHAUST GAS RECIRCULATION VALVE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

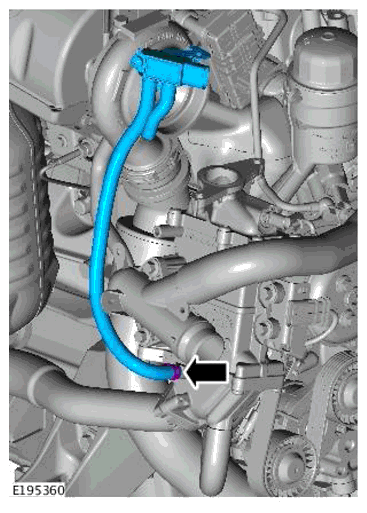

Remove the EGR pressure sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

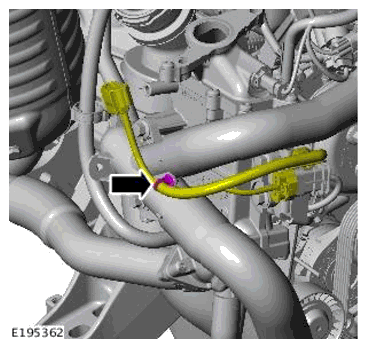

Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

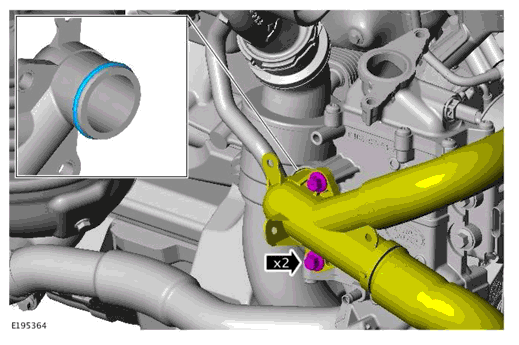

Disconnect the upper coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

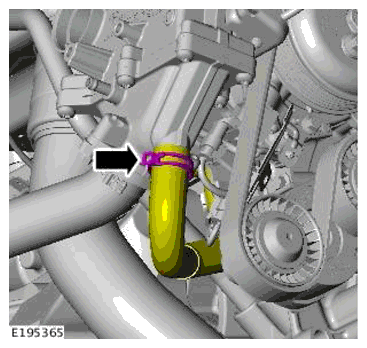

Disconnect the lower coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

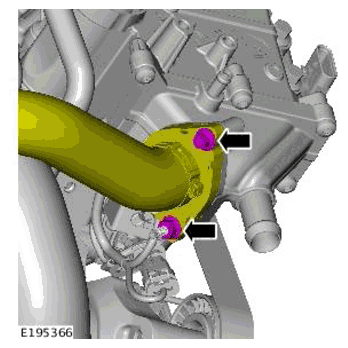

Disconnect the EGR cooler intake pipe.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

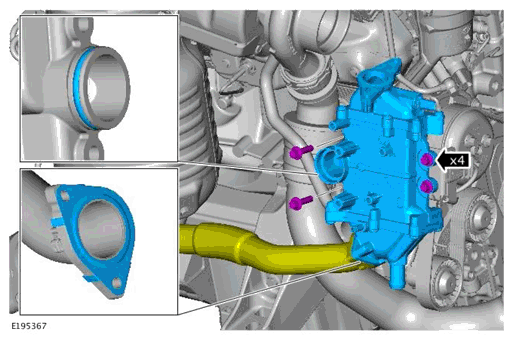

Remove the low pressure EGR cooler. Discard the O-ring seal and gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

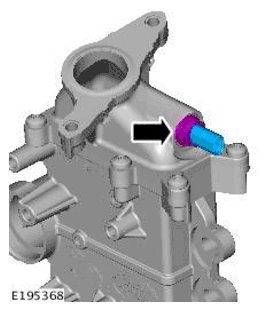

Remove the low pressure EGR temperature sensor.
