High Pressure Exhaust Gas RECIRCULATION Valve (G1947548): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
NOTE: Vehicles with EU4 emissions only

Remove the high pressure Exhaust Gas Recirculation (EGR) cooler.

Refer to: HIGH PRESSURE EXHAUST GAS RECIRCULATION COOLER
NOTE: Vehicles with EU5/6 emissions only

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the EGR pipe.
- Remove and discard the gasket.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

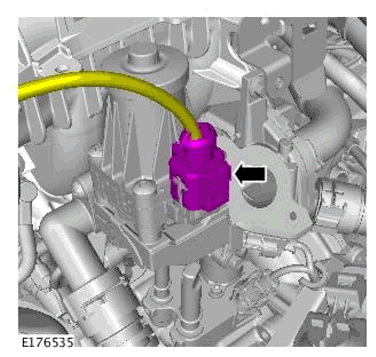

Disconnect the electrical connector for the high pressure EGR valve.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

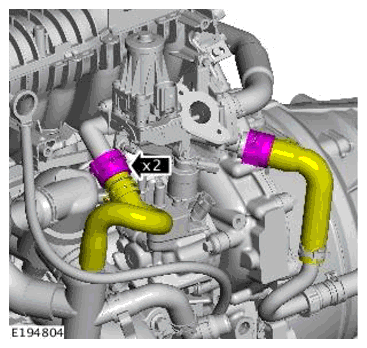

Release the 2 high pressure EGR valve coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

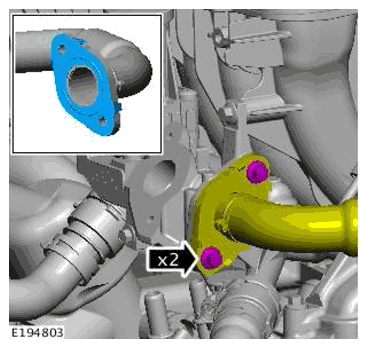

Remove the EGR valve pipe and discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the high pressure EGR valve.
