High Pressure Exhaust Gas RECIRCULATION Temperature Sensor (G1947551): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.

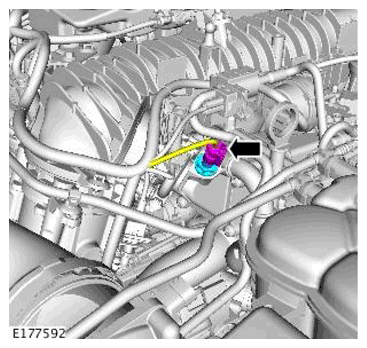

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector for the high pressure Exhaust Gas Recirculation (EGR) temperature sensor.
- Remove the high pressure EGR temperature sensor.
