Engine Vent Oil Separator (G2356994): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

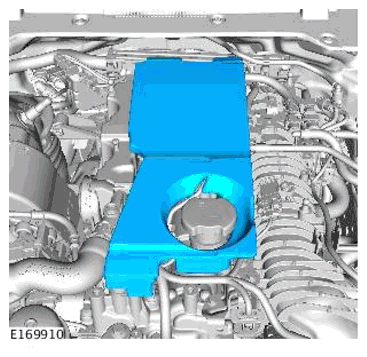

Remove the Noise, Vibration and Harshness (NVH) pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

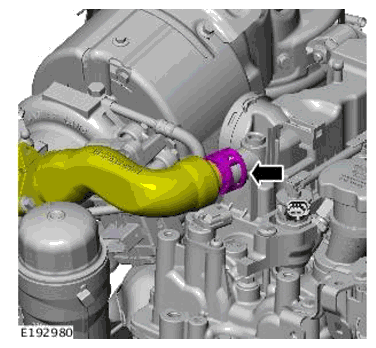

Release the breather pipe from the valve cover vent oil separator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

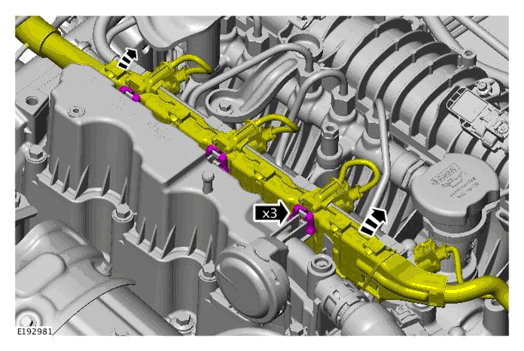

Release the fuel injector wiring harness from the 3 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

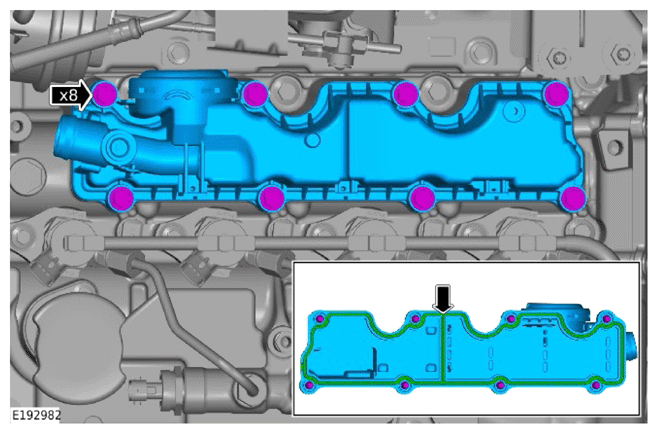

Remove the valve cover vent oil separator.
