Diesel Exhaust Fluid Injector (G1899120): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

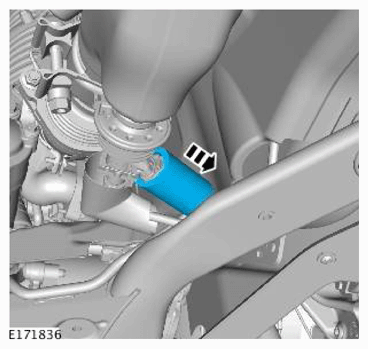

Reposition the electrical connector heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

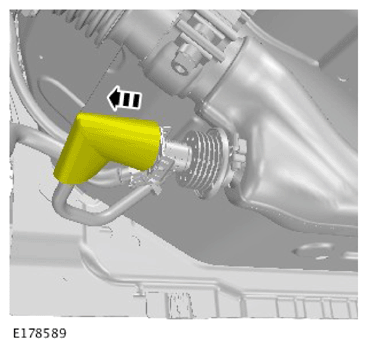

Reposition the Diesel Exhaust Fluid (DEF) injector supply pipe heatshield.
WARNING: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

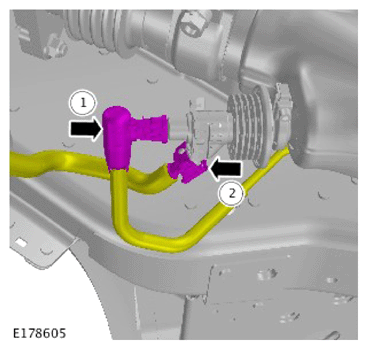

- Disconnect the DEF injector supply pipe.
- Disconnect the DEF injector electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

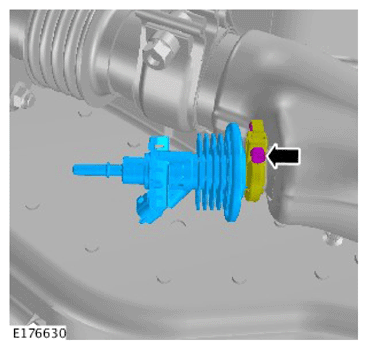

- Release the clamp.
- Remove the DEF injector.
- Discard the clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

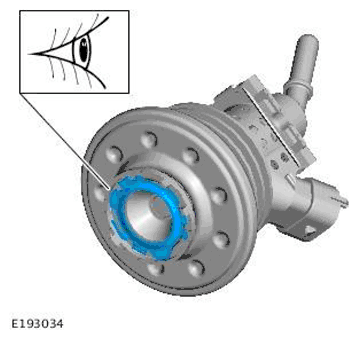

Remove and discard the gasket form the DEF injector.
