Right Engine Mount (G2130816): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains steps that are model and model year specific. These are detailed in the applicable steps.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

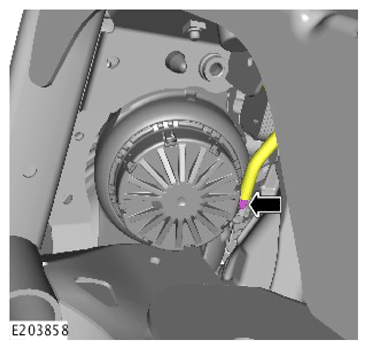

Release the vacuum pipe.
CAUTION:
- Support the engine on a jack. The angle may need to be adjusted during this procedure.
- Use a wooden block to protect the oil pan when supporting the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack, raise and support the engine.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount retaining nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

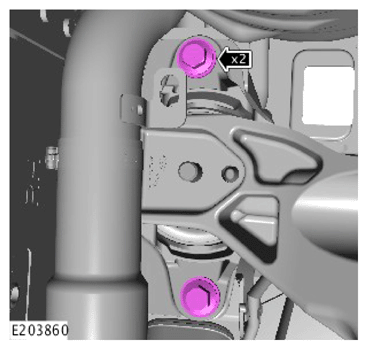

Remove the 2 engine mount retaining bolts.
NOTE: Note the fitted position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

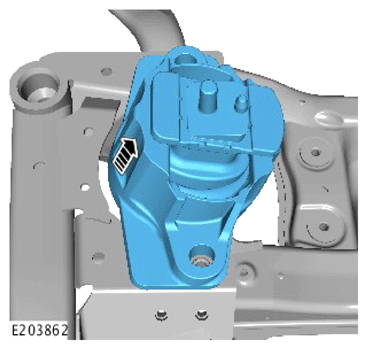

Using the suitable hydraulic jack, raise the engine to allow the removal the engine mount.
NOTE:
- This step is only required if a new engine mount is to be installed.
- This step only applies to L560 vehicles manufactured up to 10/2020.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

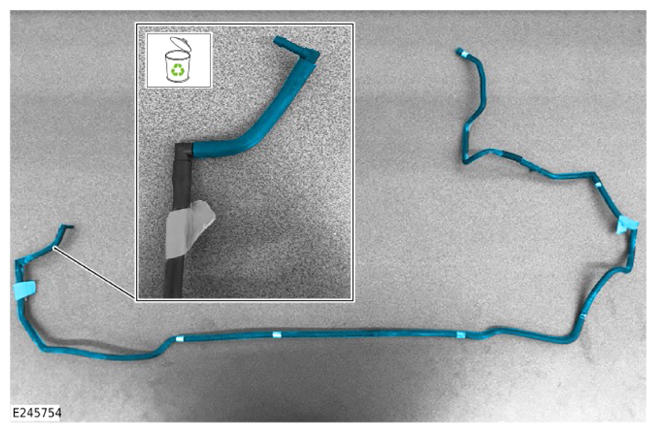

Remove and discard the article of active engine mount vacuum hose.
