Oil Cooler - INGENIUM I4 2.0L Diesel - Mid, Low Power (G1947469): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Tighten the bolts in the sequence shown.

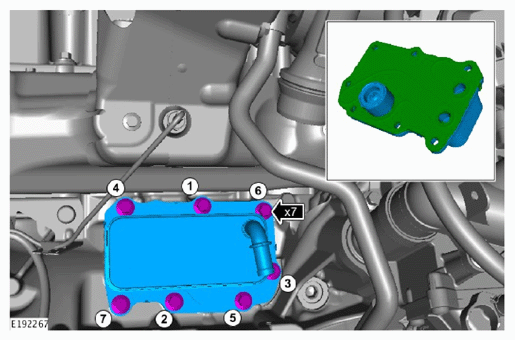

Fig 1: Oil Cooler Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new gasket.

Renew Part: Oil cooler gasket Quantity: 1 .

Torque

Stage 1: 15 Nm

Stage 2: 25 Nm
Install the oil cooler assembly coolant hose.
Install the air outlet pipe onto the charge air radiator.
Torque : 10 Nm
Fill and bleed the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD
