Left Engine Mount (G2130815): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains steps that are model and model year specific. These are detailed in the applicable steps.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Remove the thermostat.
Refer to: THERMOSTAT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

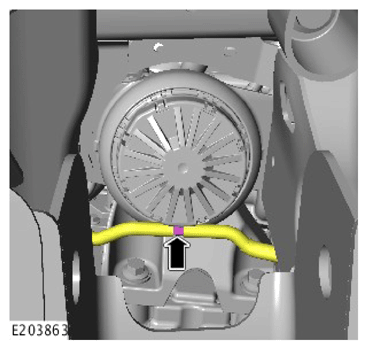

Release the vacuum pipe.
CAUTION:
- Support the engine on a jack. The angle may need to be adjusted during this procedure.
- Use a wooden block to protect the oil pan when supporting the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

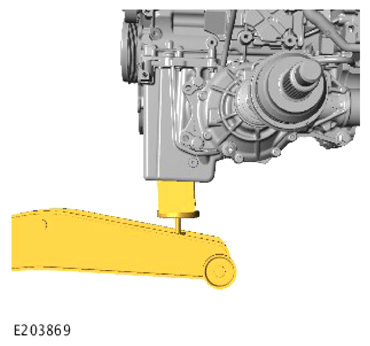

Using a suitable hydraulic jack, raise and support the engine.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

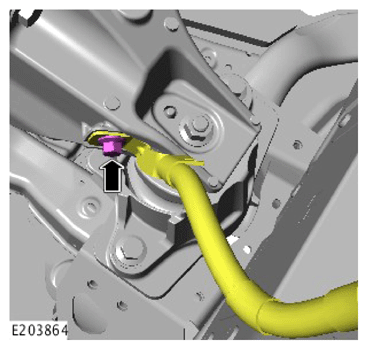

Release the ground cable and reposition away from the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount retaining nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

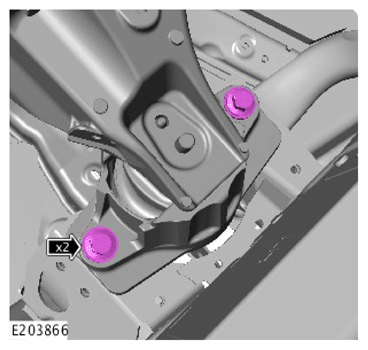

Remove the 2 engine mount retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

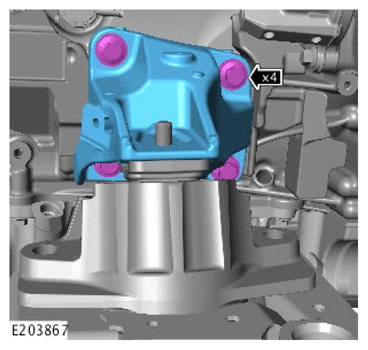

Remove the 4 engine mount bracket bolts and then remove the engine mount bracket.
NOTE: Note the fitted position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

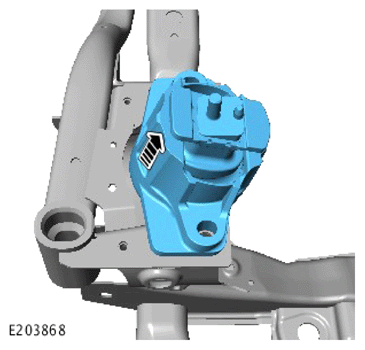

Remove the engine mount bracket.
NOTE:
- This step is only required if a new engine mount is to be installed.
- This step only applies to L560 vehicles manufactured up to 10/2020.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

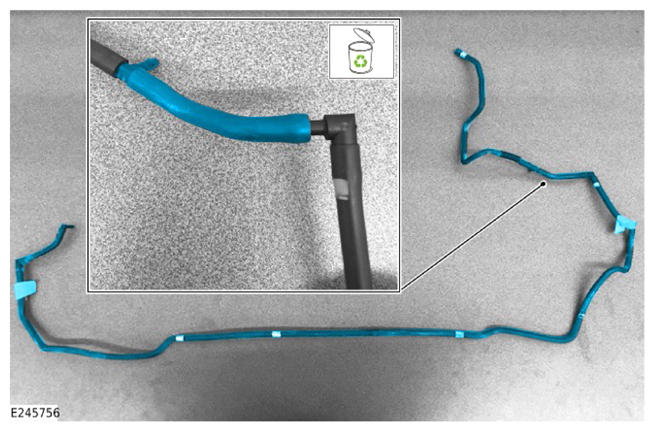

Remove and discard the article of active engine mount vacuum hose.
