Hydraulic Valve Tappet (G1867875): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: VALVE COVER

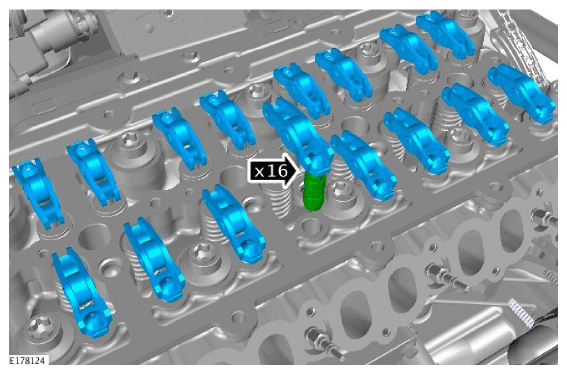

  2. CAUTION: Remove and store roller finger cam followers and hydraulic valve tappets in the fitted order and invert to prevent oil loss. Do not squeeze hydraulic valve tappet chambers together.
    G11715170Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

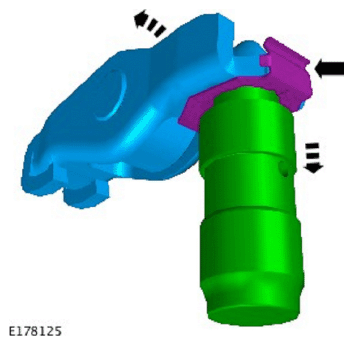

  3. CAUTION:
    • Check roller finger cam followers and hydraulic valve tappets for signs of wear, scoring and overheating.
    • Make sure oil holes in the hydraulic valve tappets are clear.
    • Care must be taken not to damage the retention clip.
    G11715171Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
