Exhaust Valve Stem Seals (G2045635): Removal

WARNING: This page is about a different variant/trim than selected.

- Remove the cylinder head.
  Refer to: CYLINDER HEAD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

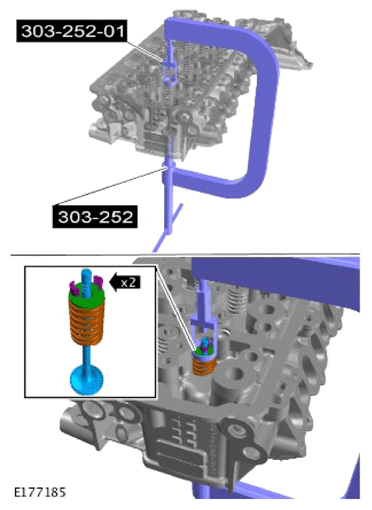

- Using the special tool, compress the valve spring.
- Remove the 2 collets.
CAUTION: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

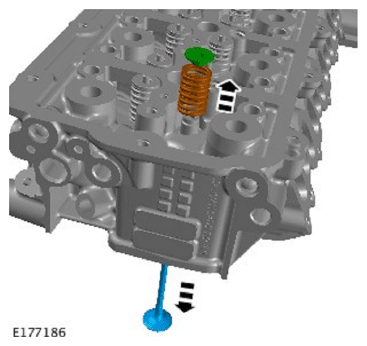

- Decompress the valve spring and remove the special tool.
- Remove the spring cap, valve spring and valve.
- Repeat the process for the remaining 7 exhaust valves.
- Remove and discard the valve stem seals.
- Clean and inspect the valve seat.
