Cylinder Head (G1817152): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the oil filter element.
Refer to: OIL FILTER ELEMENT
Remove the intake manifold.
Refer to: INTAKE MANIFOLD - INGENIUM I4 2.0L DIESEL - MID, LOW POWER
Remove the exhaust manifold.
Refer to: EXHAUST MANIFOLD - INGENIUM I4 2.0L DIESEL - HIGH POWER
Remove the valve cover.
Refer to: CAMSHAFT CARRIER
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

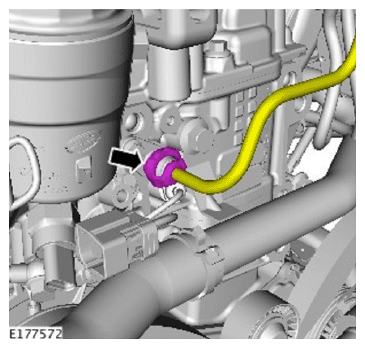

Remove the coolant outlet hose.

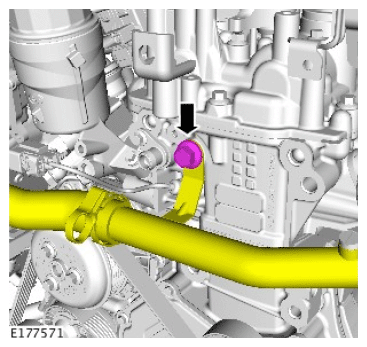

Release the coolant bypass hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

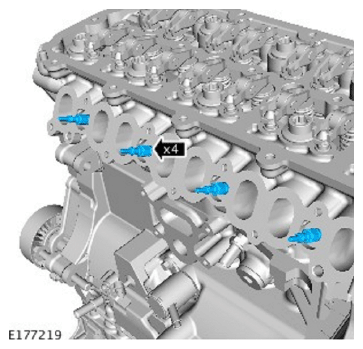

Remove the 4 glow plugs

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

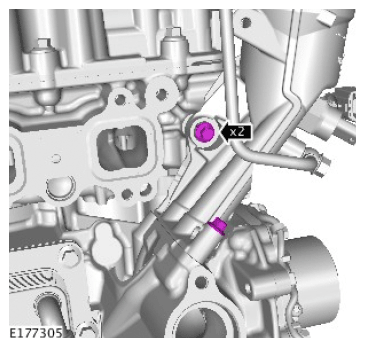

Remove the 2 oil filter element housing bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

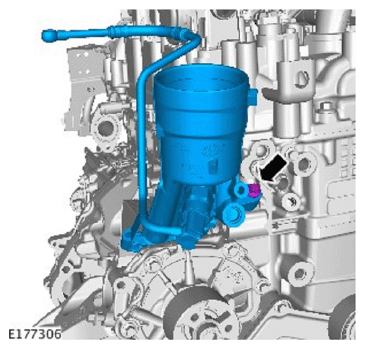

Remove the remaining bolt and then remove the oil filter element housing.

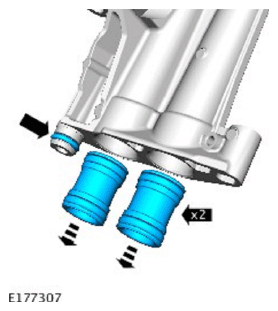

Remove and discard the O-ring seals from the oil filter element housing.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

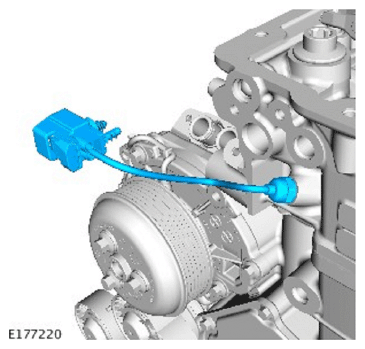

Remove and discard the cylinder head temperature sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that the components are clean, dry and free from corrosion and foreign material.
- Check all timing components for wear and install new components if required.
NOTE: Note the orientation of the components prior to removal

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

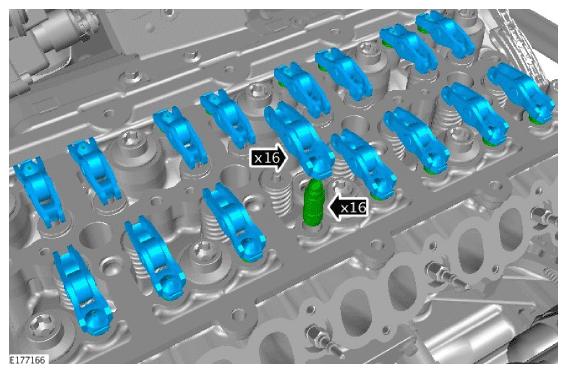

Remove the 16 camshaft rocker arms and the 16 hydraulic adjusters.

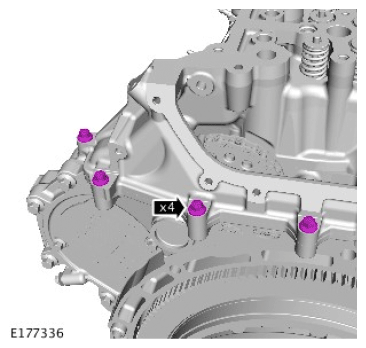

Remove the 4 cylinder head bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Use the special tool to remove the cylinder head bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Special Tool(s): JLR-303-1653

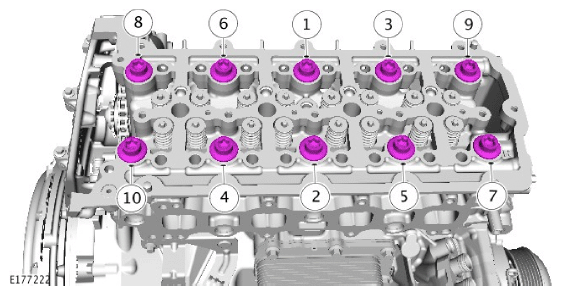

Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 10 bolts in the illustrated sequence.
- Discard the 10 bolts.
- Remove the special tool.
  Remove the Special Tool(s): JLR-303-1653
CAUTION:
- Take extra care not to damage the edges of the component.
- Take extra care not to damage the surrounding components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

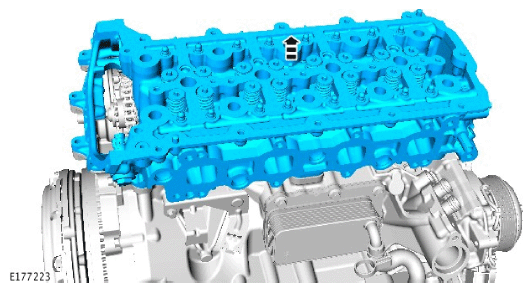

Remove the cylinder head assembly.

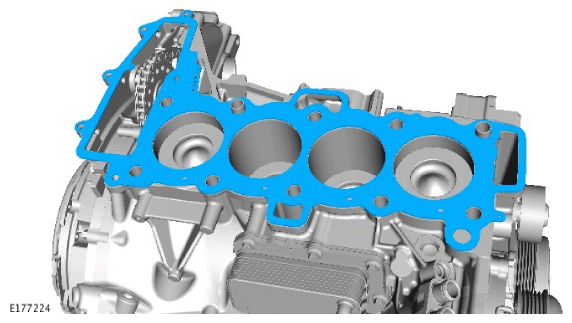

Remove and discard the cylinder head gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

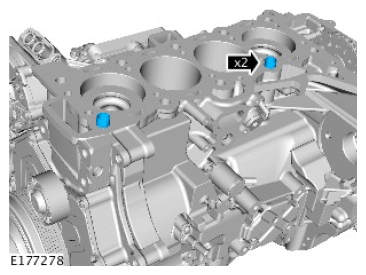

CAUTION: Make sure that the dowels and dowel holes are clean and free from debris and foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cylinder head dowels

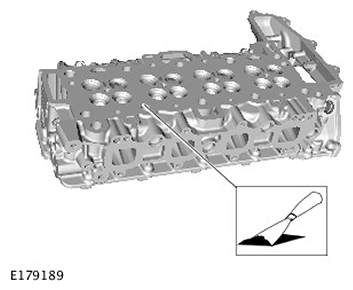

CAUTION: Only use a plastic scraper to clean off the old gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Clean and inspect the cylinder head and cylinder block.
