Cylinder Head (G1817152): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

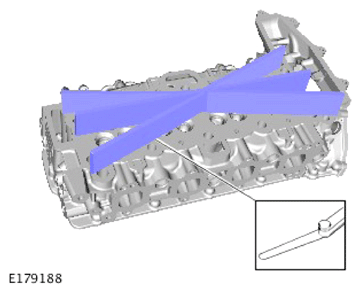

Check cylinder head face for distortion, across the center and from corner to corner.

Refer to: CYLINDER HEAD DISTORTION
Select the correct cylinder head gasket.
Refer to: CYLINDER HEAD GASKET SELECTION - INGENIUM I4 2.0L DIESEL
CAUTION: Make sure that the dowels and dowel holes are clean and free from debris and foreign material.

Install the cylinder head dowels into the engine block assembly.
NOTE: The cylinder head gasket must be installed over the cylinder head to cylinder block dowels.

Install the correct cylinder head gasket.

Renew Part: Cylinder head gasket Quantity: 1 .
CAUTION: Make sure that the component is correctly located on the locating dowels.

With assistance, install he cylinder head assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

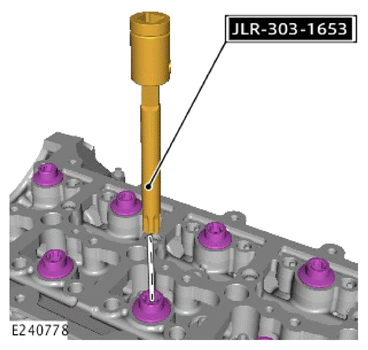

Use the special tool to install the cylinder head bolts.

Install the Special Tool(s): JLR-303-1653
CAUTION: Make sure that new cylinder head bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

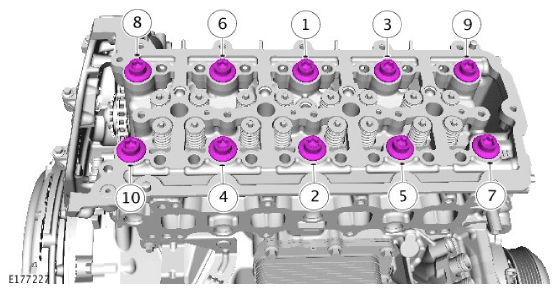

Tighten the 10 cylinder head bolts in the indicated sequence.

Renew Part: Cylinder head bolts Quantity: 10 .

Torque

Stage 1: 10 Nm

Stage 2: 20 Nm

Stage 3: 53 Nm
CAUTION: Carry out the following procedure in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release each cylinder head bolt by 180° and then tighten to 53 Nm. Repeat this step for each bolt following the indicated sequence.

Torque

Stage 1:

Loosen the bolt: 180°

: 180°

Stage 2:

Tighten the bolt: 53 Nm

: 53 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Tighten the bolts in the illustrated sequence.
  Torque

  Stage 1: 90°

  Stage 2: 120°
- Remove the special tool.
  Remove the Special Tool(s): JLR-303-1653
Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

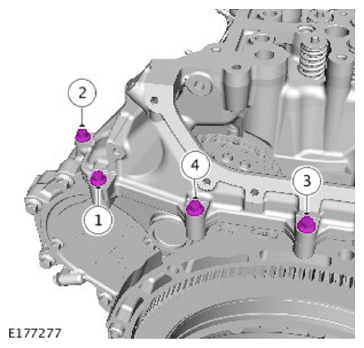

Install and tighten the 4 cylinder head bolts.

Torque : 13 Nm
NOTE: Install the camshaft followers in the sequence noted in the removal step.

Install the 16 camshaft rocker arms and the 16 hydraulic adjusters.
Install a new cylinder head temperature senor and tighten to the correct torque.
Renew Part: Cylinder head temperature sensor Quantity: 1 .

Torque : 11 Nm
CAUTION: If accidentally dropped or knocked install a new glow plug.

Install the 4 glowplugs.

Torque : 13 Nm
Install the coolant bypass hose.
Torque : 25 Nm
Install the coolant outlet hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

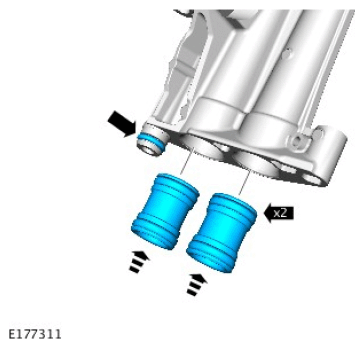

Install new O-ring seals for to the oil filter element housing assembly.

Renew Part: Oil filter housing inlet/outlet O-ring seals Quantity: 4 .

Renew Part: Oil filter housing drain port O-ring seal Quantity: 1 .
Install the oil filter element housing assembly and tighten the 3 bolts to the specified torque.
Torque : 12 Nm
Install the valve cover.
Refer to: CAMSHAFT CARRIER
Install the exhaust manifold.
Refer to: EXHAUST MANIFOLD - INGENIUM I4 2.0L DIESEL - HIGH POWER
Install the intake manifold.
Refer to: INTAKE MANIFOLD - INGENIUM I4 2.0L DIESEL - MID, LOW POWER
Install the oil filter element.
Refer to: OIL FILTER ELEMENT
Lower the vehicle.
