Engine Oil Vacuum Draining And Filling (G2020206): Check

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that all openings are sealed.

NOTE:

- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
Engine oil vacuum draining and filling is the recommended procedure for engine oil change during a scheduled service. Scheduled service labour times are calculated using this method.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
- Allow the engine oil to drain from the oil filter element housing for two minutes.

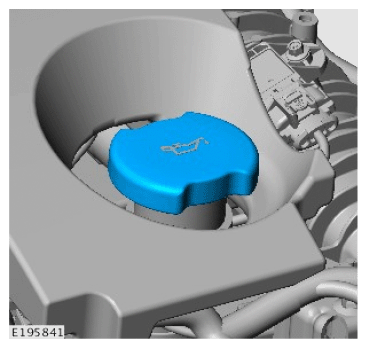

Remove the engine oil filler cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the engine oil level indicator.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

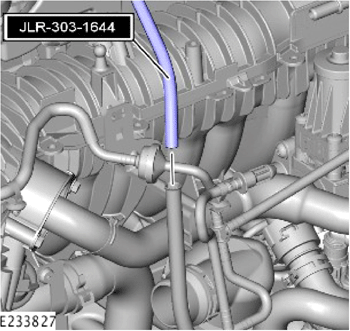

- Using the oil vacuum pump drain the oil out through the oil extraction tube.
  Special Tool(s): JLR-303-1644
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1644
Install the engine oil filler cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

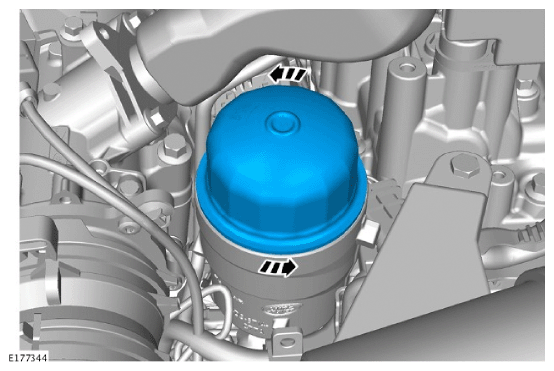

Remove the oil filter element housing.
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

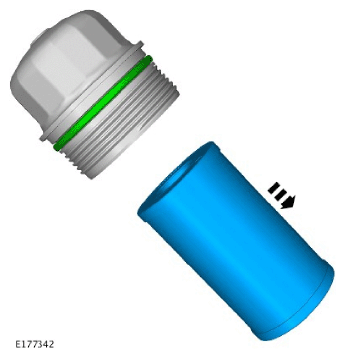

- Remove and discard oil filter element from oil filter housing.
- Remove and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

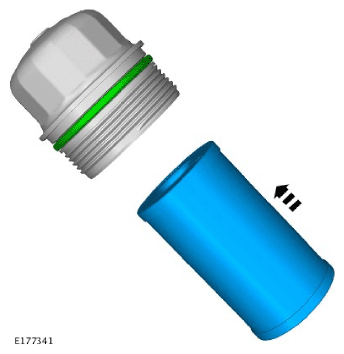

- Install a new O-ring seal.
  Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
- Install a new oil filter.
  Renew Part: Oil filter Quantity: 1 .
- Lubricate the oil filter O-ring seal with clean engine oil.
Torque : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the engine oil filler cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Fill the engine with the recommended oil to the correct level.
Refer to: SPECIFICATIONS
Install the engine oil filler cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Check the engine oil level.
NOTE: Make sure that the component is correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Start the engine and allow to idle for 2 minutes.
- Check for leaks.
- Stop the engine.
- Check the engine oil level.
- Top up as required.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
