Major Structural Components

WARNING: This page is about a different variant/trim than selected.

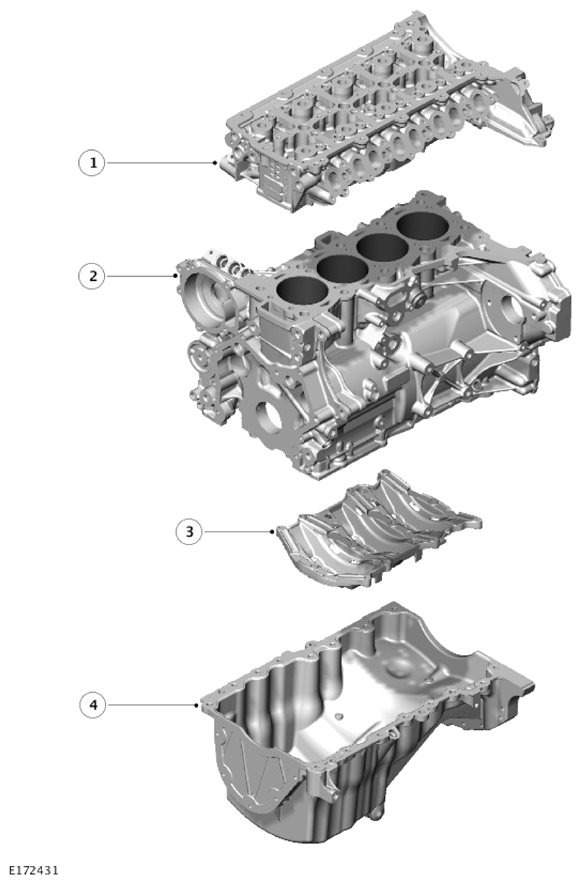

G14280337Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Cylinder head
2 Cylinder block
3 Windage tray
4 Oil pan
