Cylinder Numbering

WARNING: This page is about a different variant/trim than selected.
G11714586Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

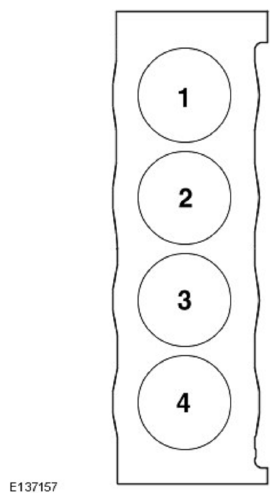

The cylinders are numbered as shown, with cylinder 1 at the front of the engine
