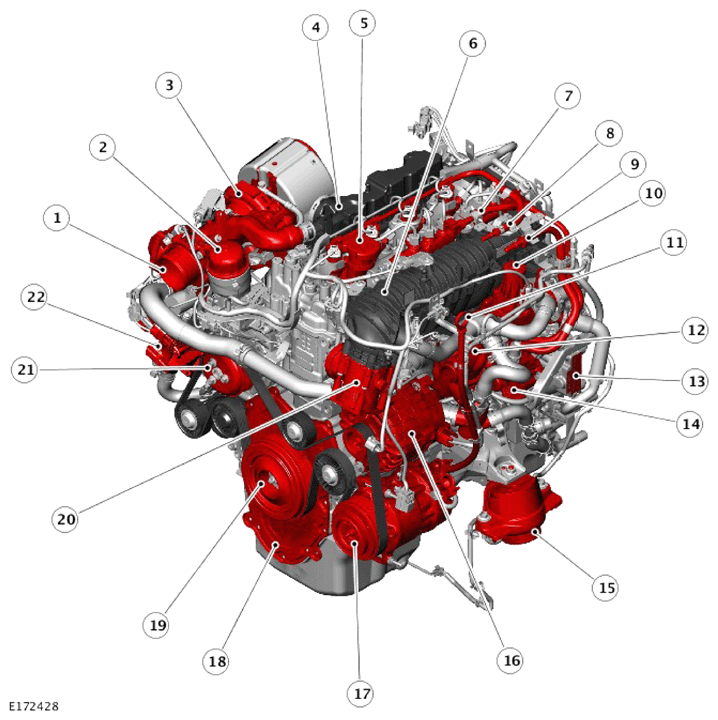

Component Location - INGENIUM I4 2.0L Diesel 180PS - EU4/5/6, NAS - External Components Sheet 1 Of 2
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Turbocharger low pressure inlet |
| 2 | Oil filter and housing assembly |
| 3 | Variable Geometry Turbocharger (VGT) |
| 4 | Engine vent module (positive crankcase ventilation) |
| 5 | Oil filler cap |
| 6 | Intake manifold |
| 7 | Fuel return to fuel tank |
| 8 | Fuel return from fuel rail to fuel cooler |
| 9 | High Pressure (HP) fuel pump fuel inlet from fuel filter |
| 10 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve (EU4/5/6 and NAS specifications) |
| 11 | Oil level gauge |
| 12 | Electric thermostat |
| 13 | Engine data location |
| 14 | High Pressure (HP) fuel pump |
| 15 | Left active engine mount |
| 16 | Generator |
| 17 | Air conditioning (A/C) compressor |
| 18 | Engine front cover |
| 19 | Crankshaft pulley/mass damper |
| 20 | Throttle body |
| 21 | Variable coolant pump |
| 22 | LP EGR cooler (EU5/6 and NAS only) |
