Right Exhaust Gas Temperature Sensor (G1208494): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the exhaust system.
Refer to: REMOVAL AND INSTALLATION .
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.

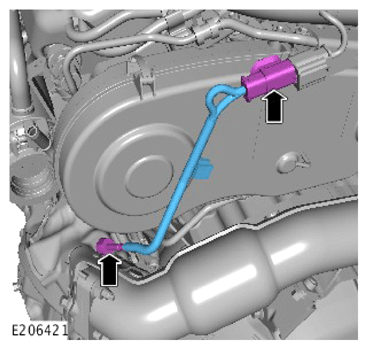

Disconnect the electrical connector.
- Remove the exhaust gas temperature sensor.
-
