Pre Selective Catalyst Reduction NOX Sensor (G2270665): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Use caution when you do work near a hot exhaust system. If this instruction is not followed, personal injury may occur.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Remove the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the pre Selective Catalyst Reduction (SCR) NOx sensor module from the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the wiring harness from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

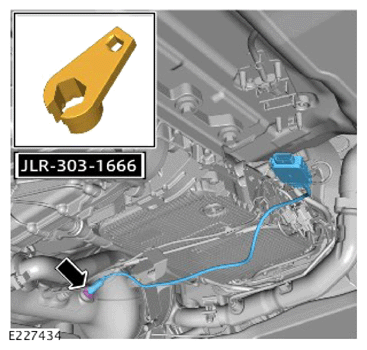

Using the special tool, remove the SCR NOx sensor.

Special Tool(s): JLR-303-1666
