Pre DPF Exhaust Gas Temperature Sensor (G1887681): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: If accidentally dropped or knocked install a new sensor.

NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

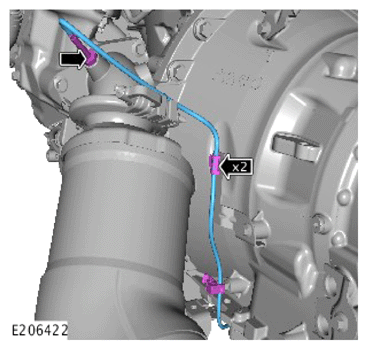

- Install the pre Diesel Particulate Filter (DPF) sensor.
  Torque : 35 Nm
- Secure the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

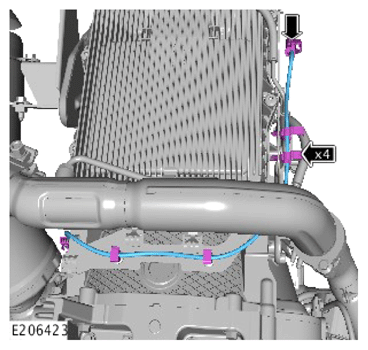

- Connect the electrical connector.
- Secure the 4 retaining clips.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD
