Pre Catalytic Converter Temperature Sensor (G1208497): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

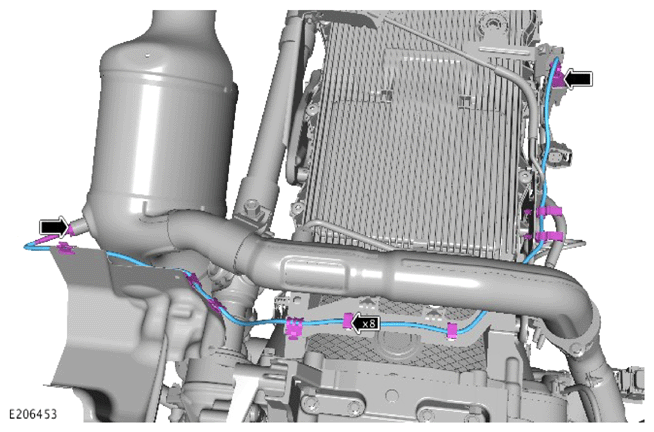

- Release the 8 retaining clips.
- Disconnect the electrical connector.
- Remove the pre Diesel Particulate Filter (DPF) sensor.
