Post Catalytic Converter Temperature Sensor (G1887680): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustration showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD

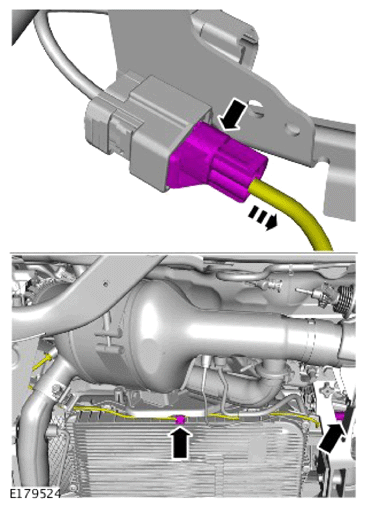

Disconnect the electrical connector and release the retaining clip.

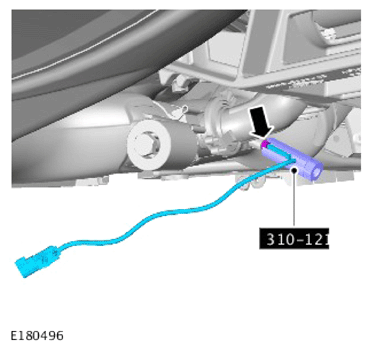

Using the special tool remove the post catalytic converter temperature sensor.
Special Tool(s): 310-121
