Mass Air Flow Sensor (G1885345): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustration showing certain components removed to provide extra clarity.
  • Left illustration shown, right is similar.

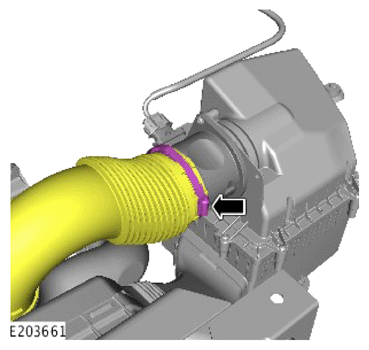

  1. G14289953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the air duct.

    Torque  : 3.5 Nm

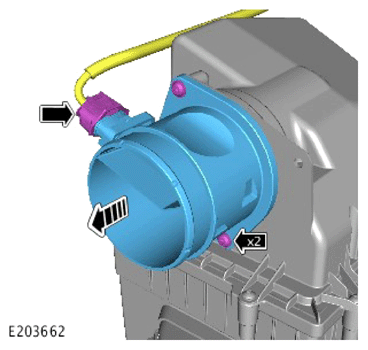

  2. G14289954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector and remove the Mass Air Flow (MAF) sensor.
