Manifold Absolute Pressure Sensor (G1085508): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Make sure that the MAP (Manifold Absolute Pressure) sensor is held in a downwards position during cleaning to avoid any carbon deposits entering the MAP sensor.
- Do not use hard or sharp tools to clean the sensor or damage may occur.
- Do not insert any tooling into the sensing element. Failure to follow this instruction could damage the component.
NOTE: All dirt or contaminants must be removed from the MAP (Manifold Absolute Pressure) sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

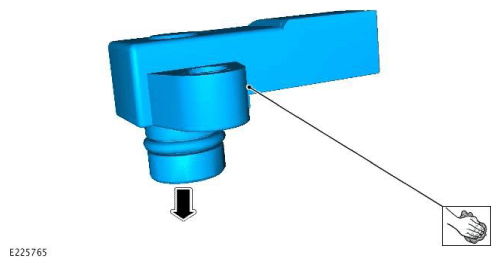

Using a suitable blunt tool, thoroughly clean the Manifold Absolute Pressure (MAP) sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

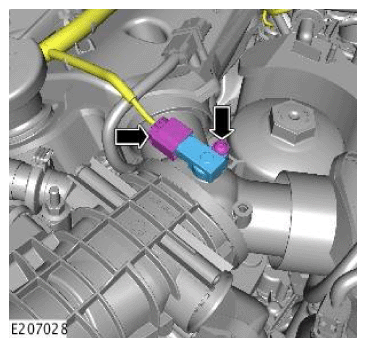

- Install the MAP sensor.
- Install the MAP sensor retaining bolt.
- Connect the MAP electrical connector.
Install the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
