Heated Oxygen Sensor (G1887679): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the catalytic converter and diesel particulate filter assembly.
Refer to: CATALYTIC CONVERTER AND DIESEL PARTICULATE FILTER ASSEMBLY

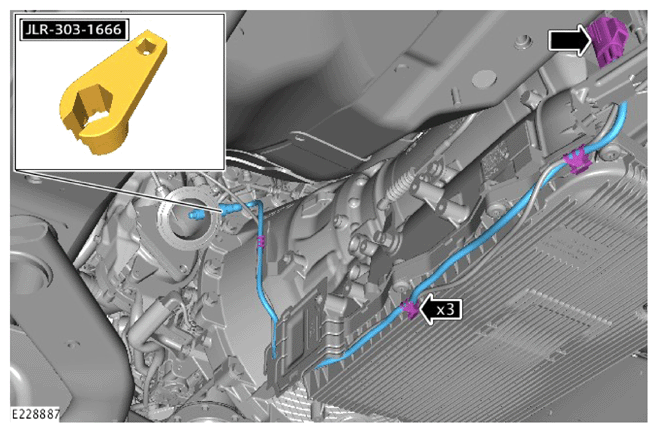

- Disconnect the electrical connector and release the 3 retaining clips.
- Using the special tool, remove the heated oxygen sensor (HO2S).
Special Tool(s): JLR-303-1666
