Engine Oil Pressure Sensor (G2131640): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Remove the engine cover.

    Refer to: ENGINE COVER - TDV6 3.0L DIESEL

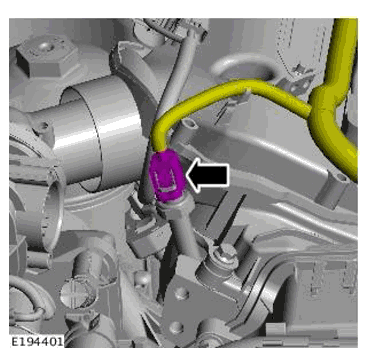

  2. G11699286Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

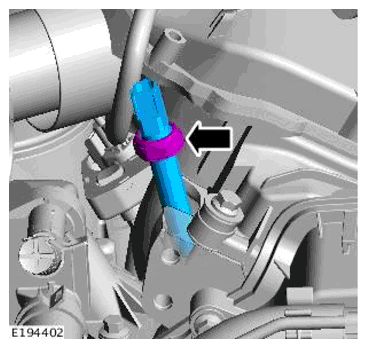

  3. G11699287Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine oil pressure sensor.
